西门子B1027万用表

[ 2022-07-30 13:53:45 | 作者: 牛犊 ]

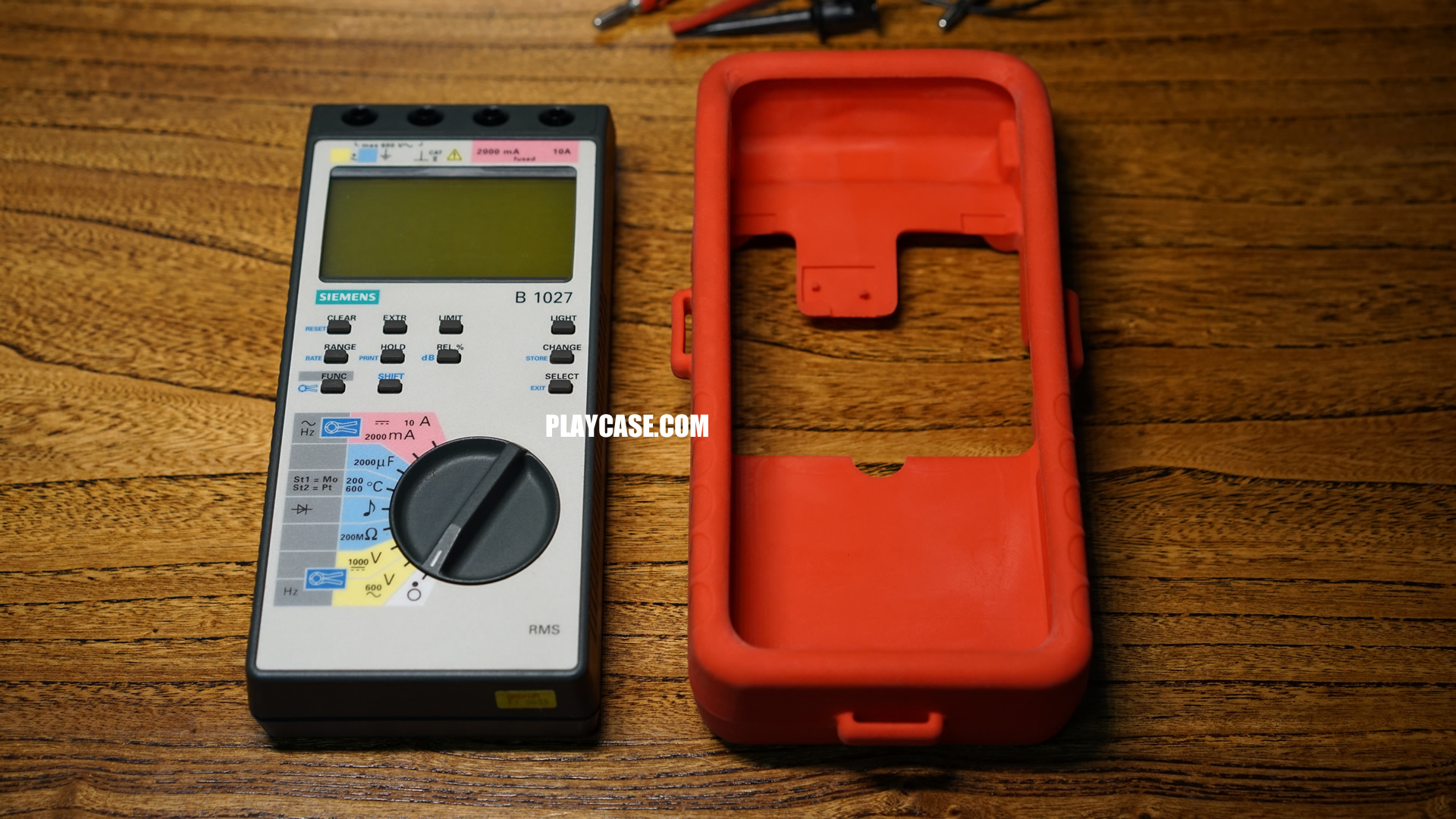

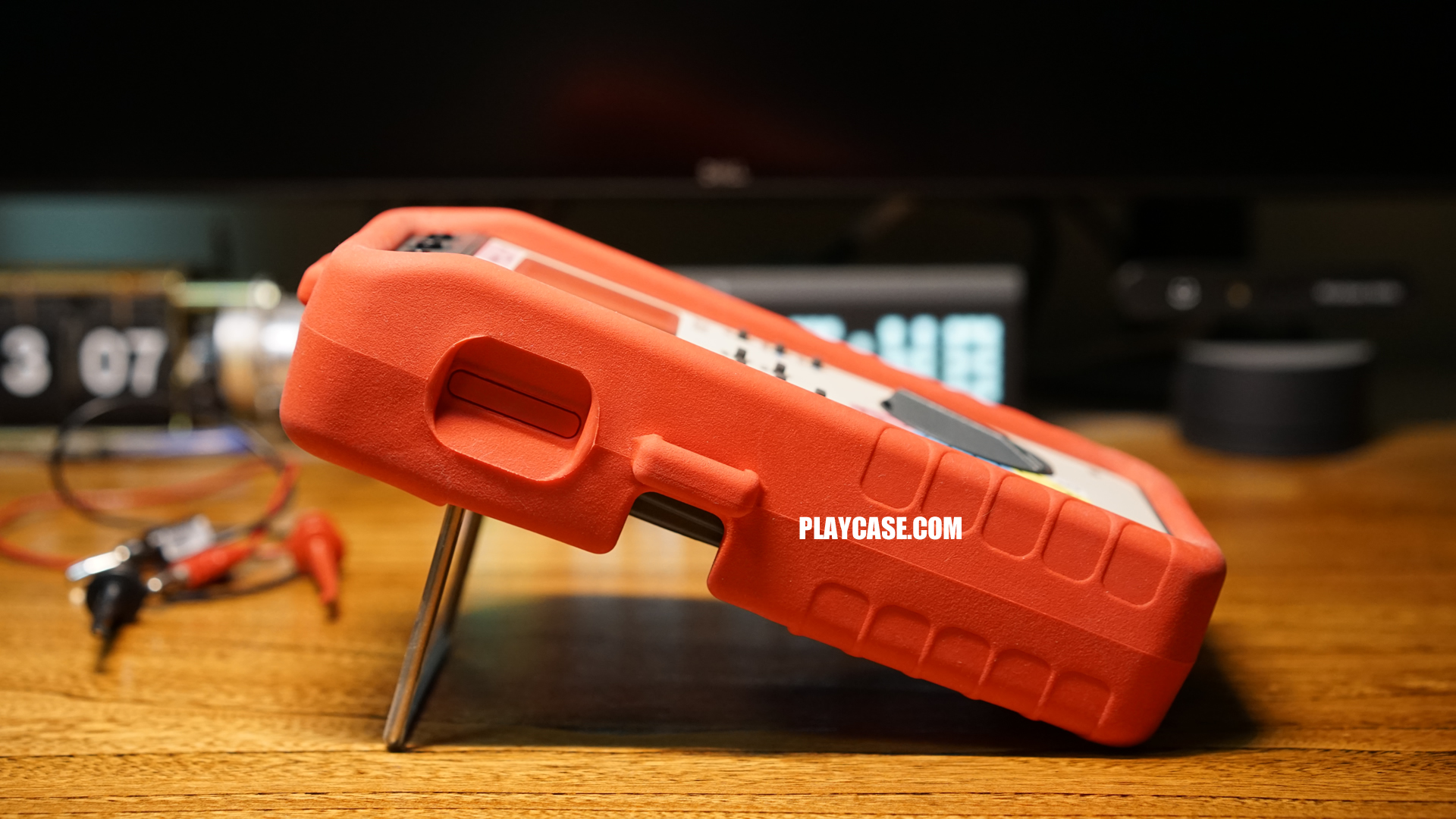

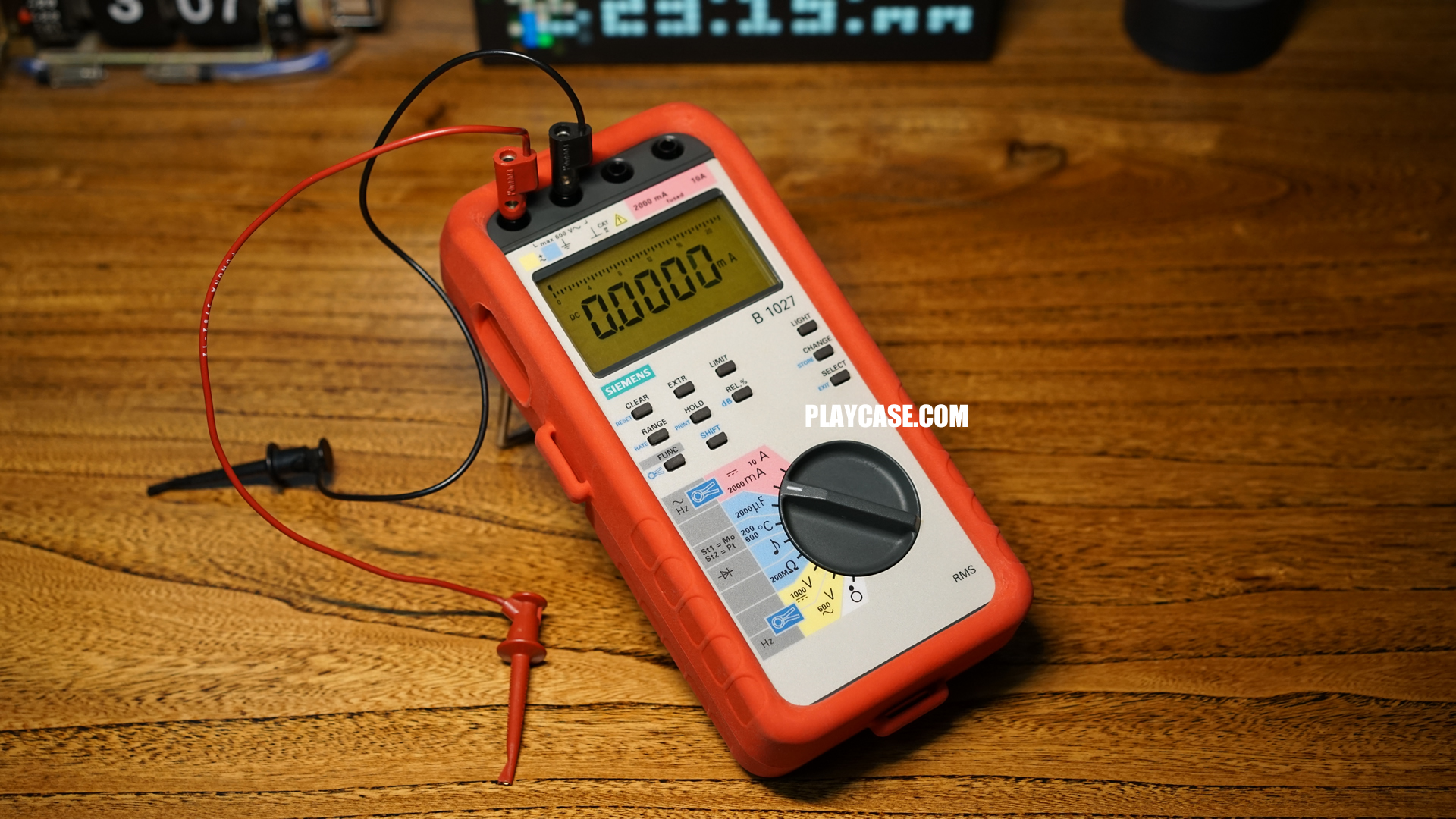

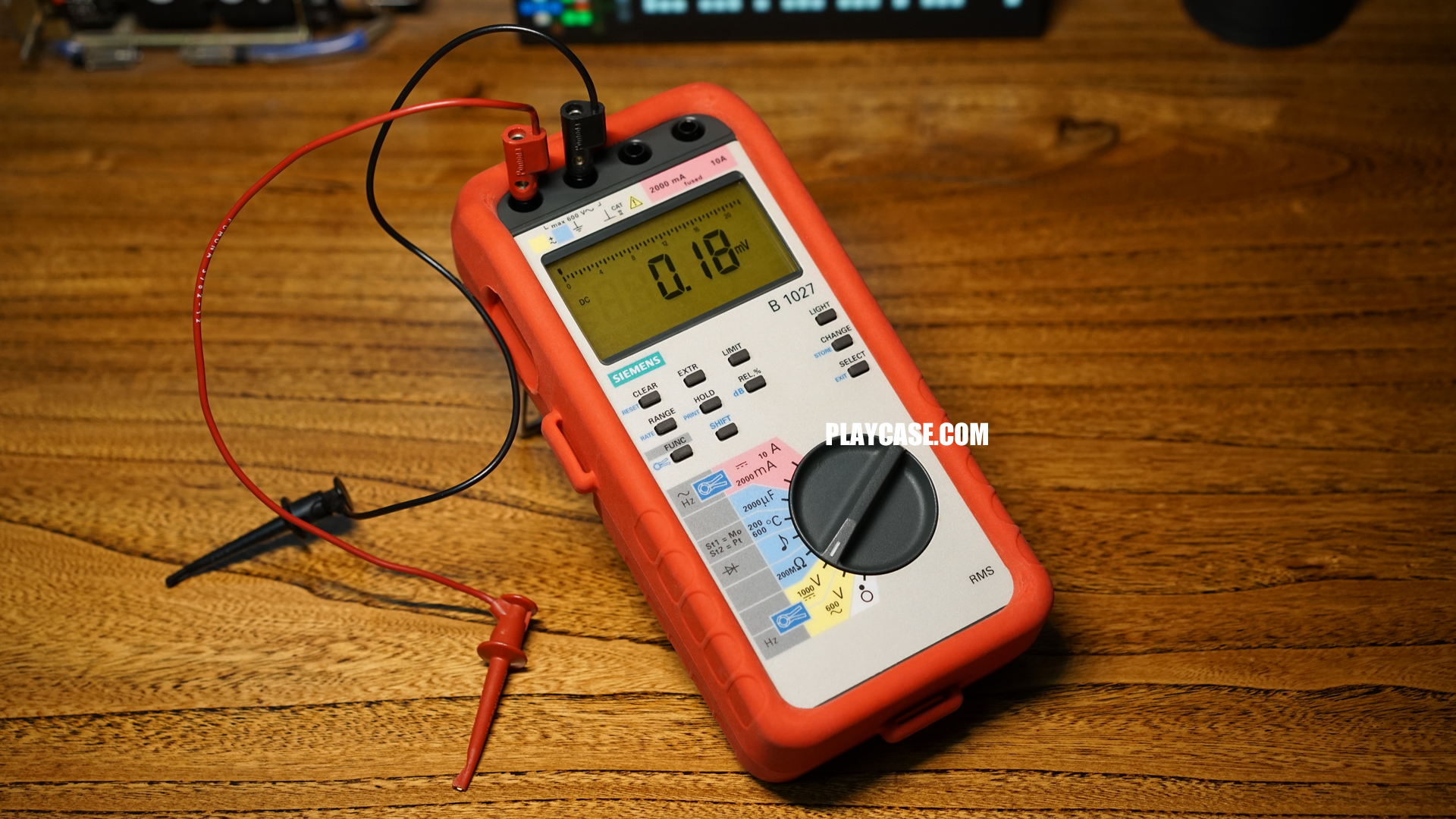

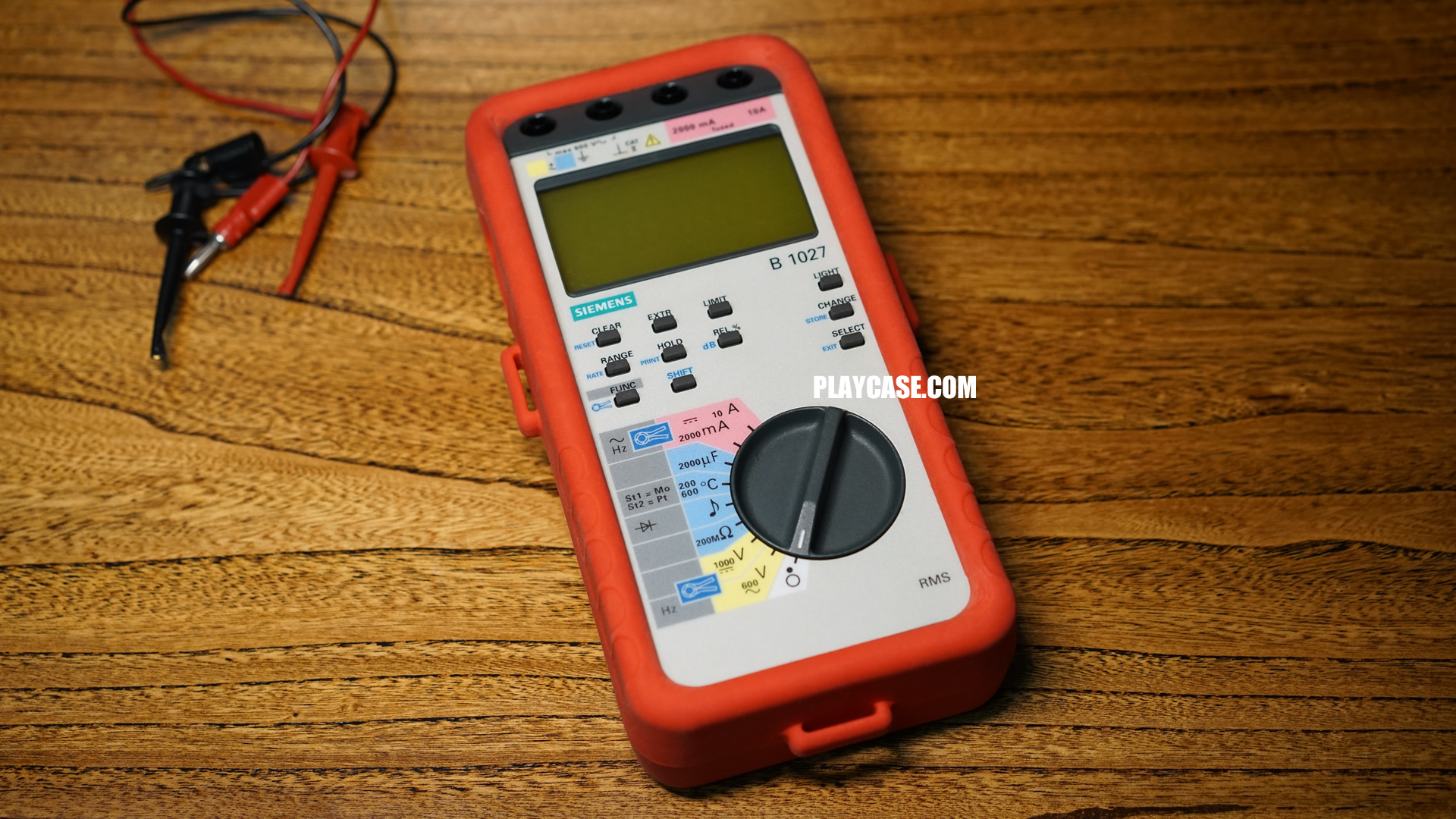

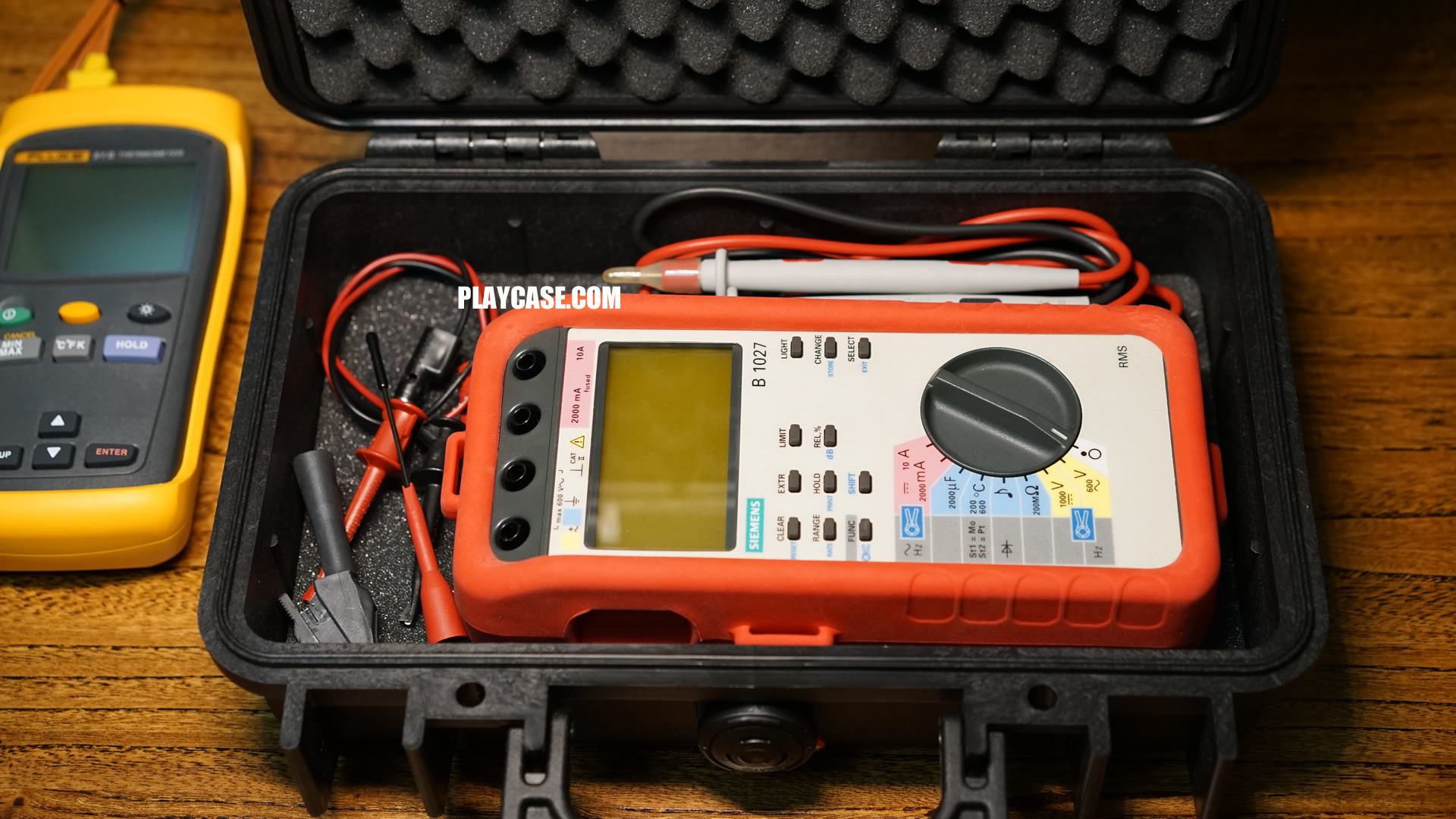

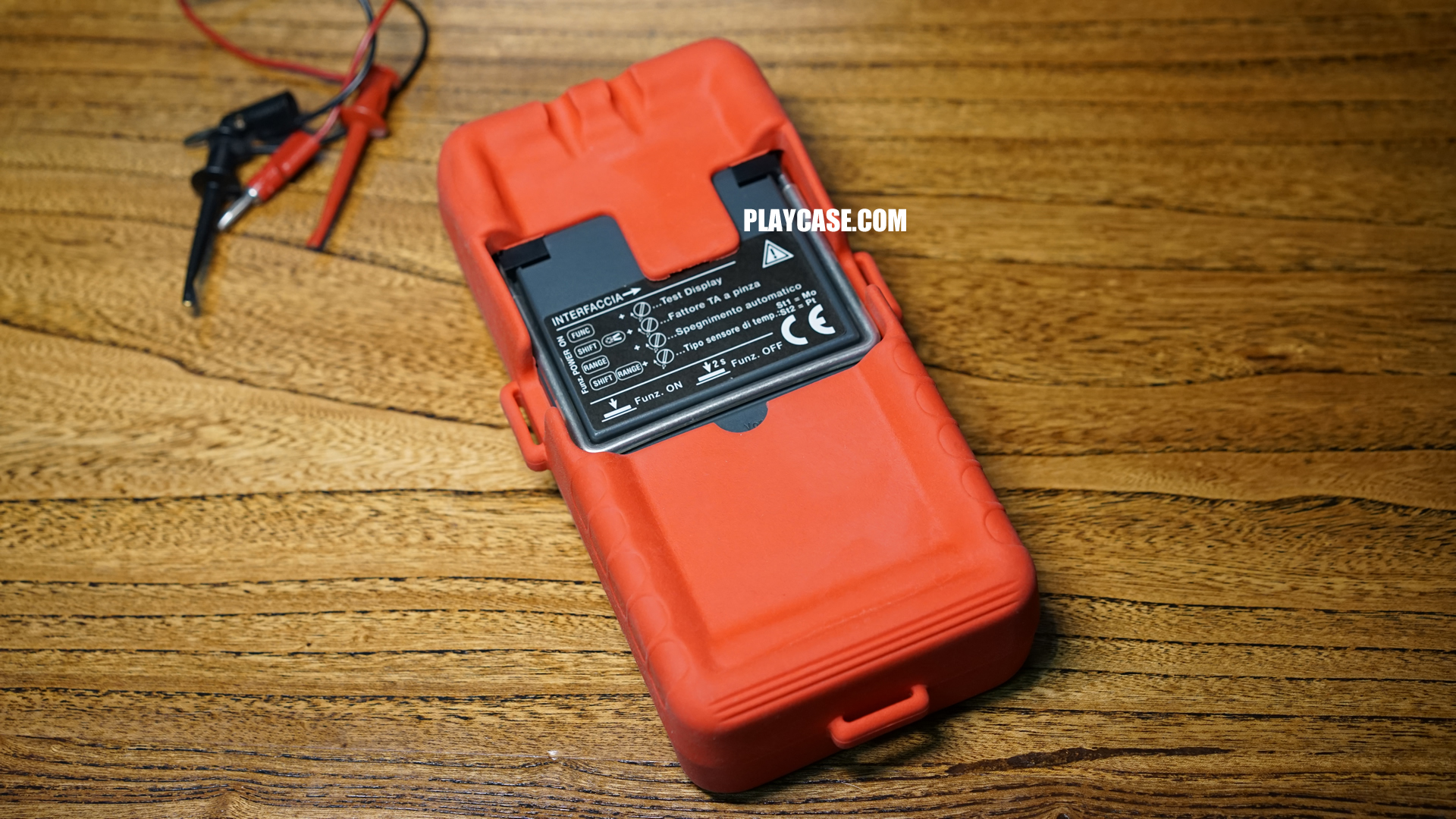

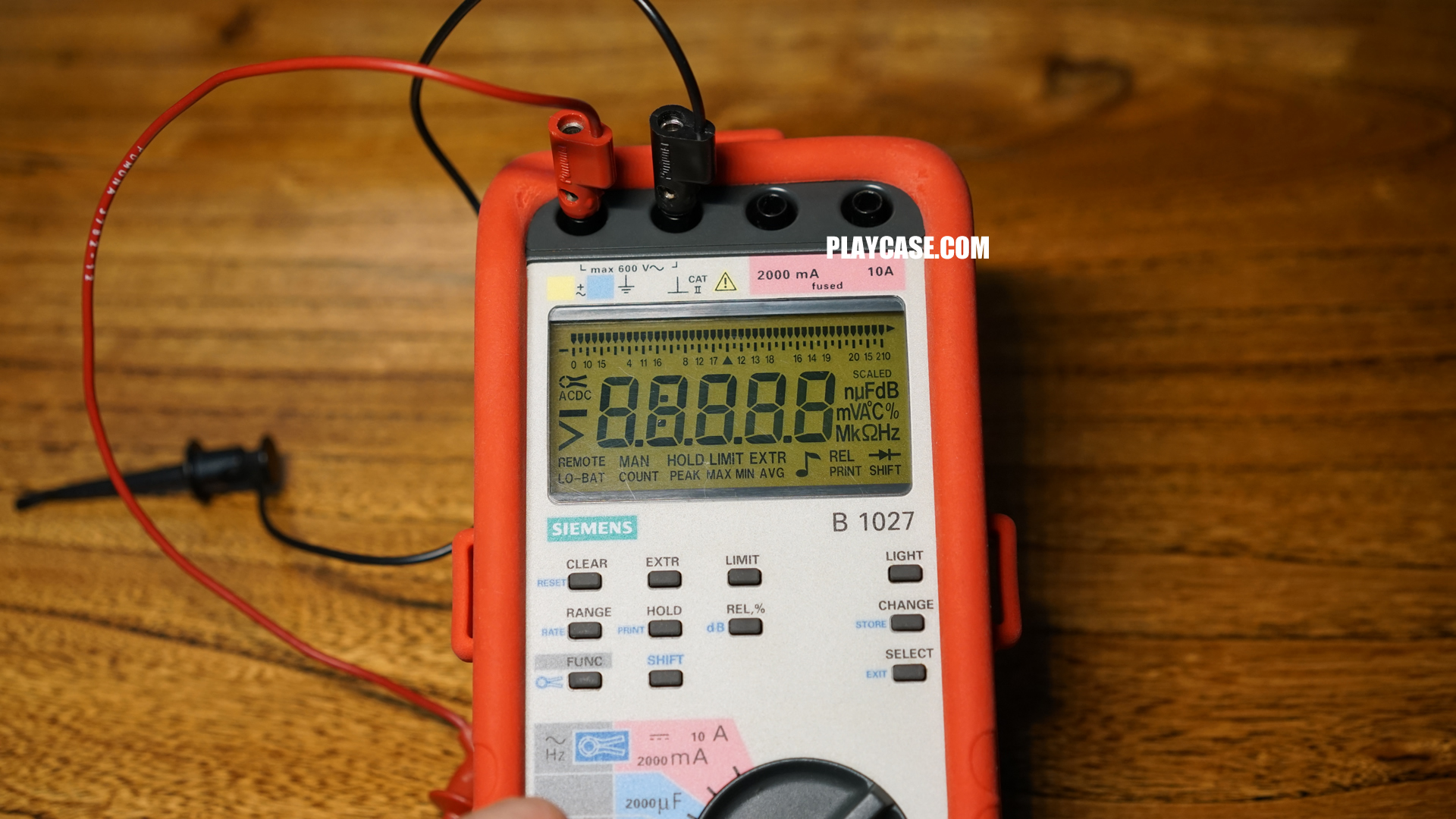

西门子B1027万用表(Norma DM940),产于上世纪80年代末,11年前看过拆解印象深刻,有幸找到一台,成色非常不错,原厂胶套很软,手感出色。

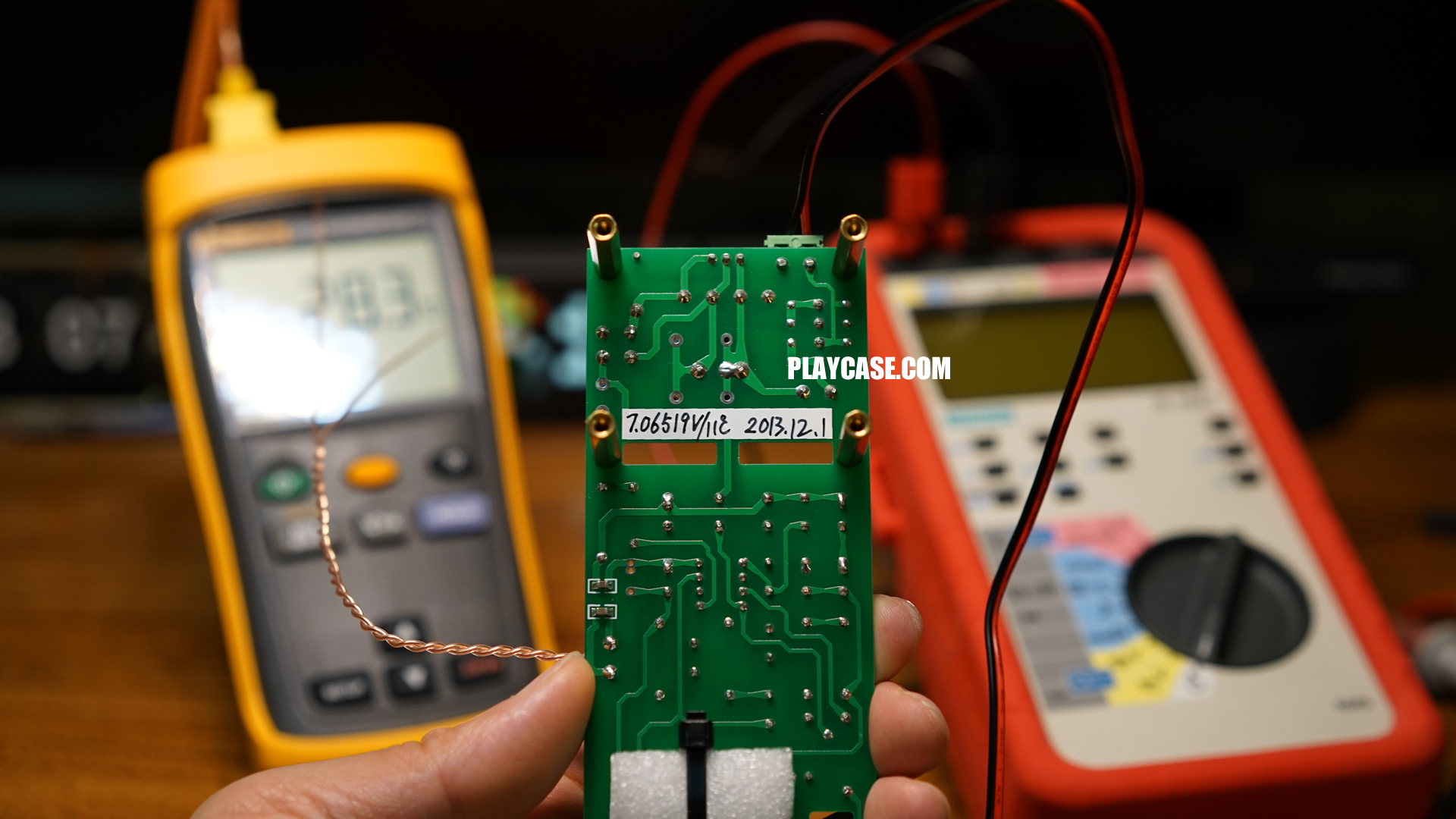

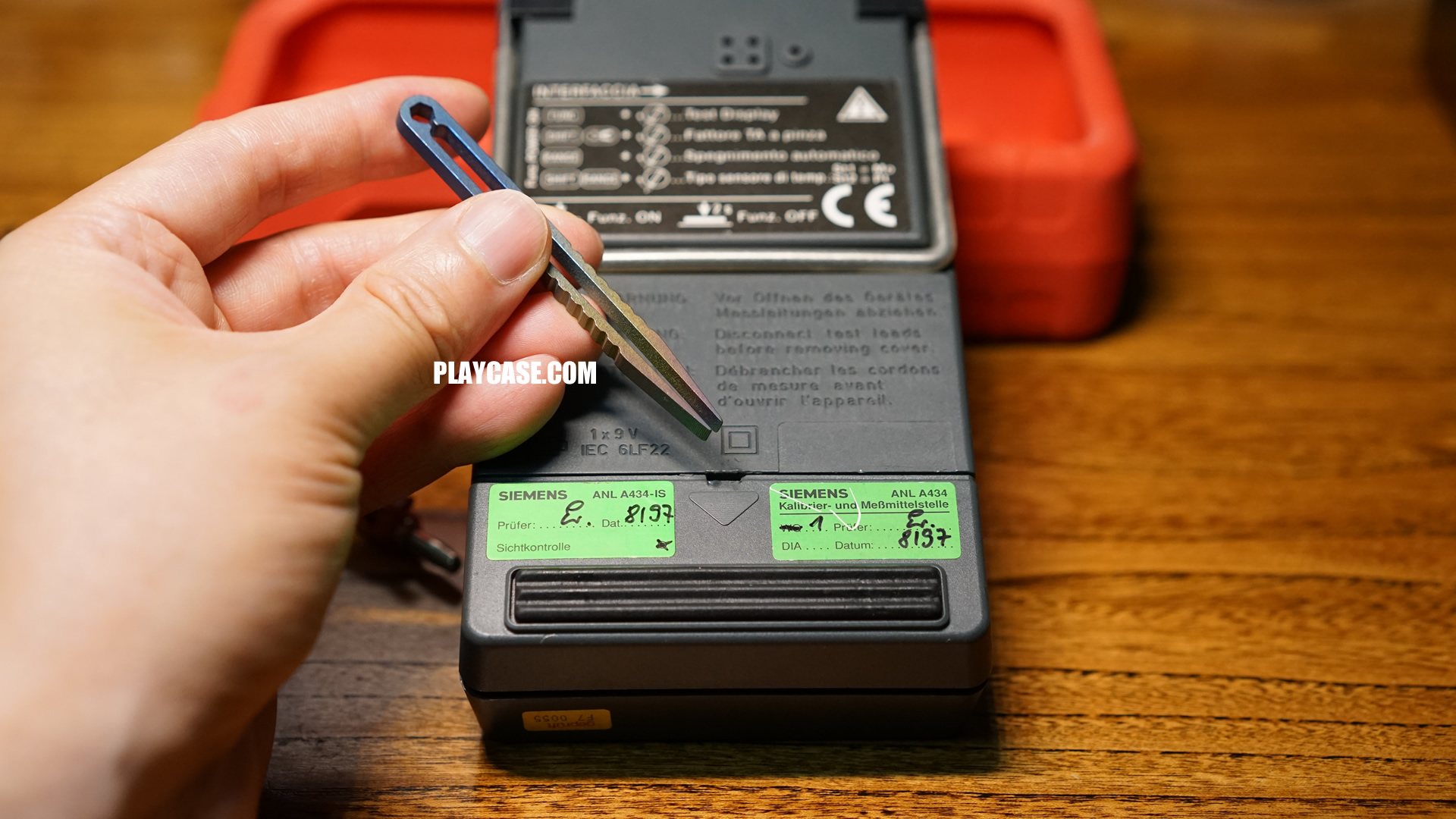

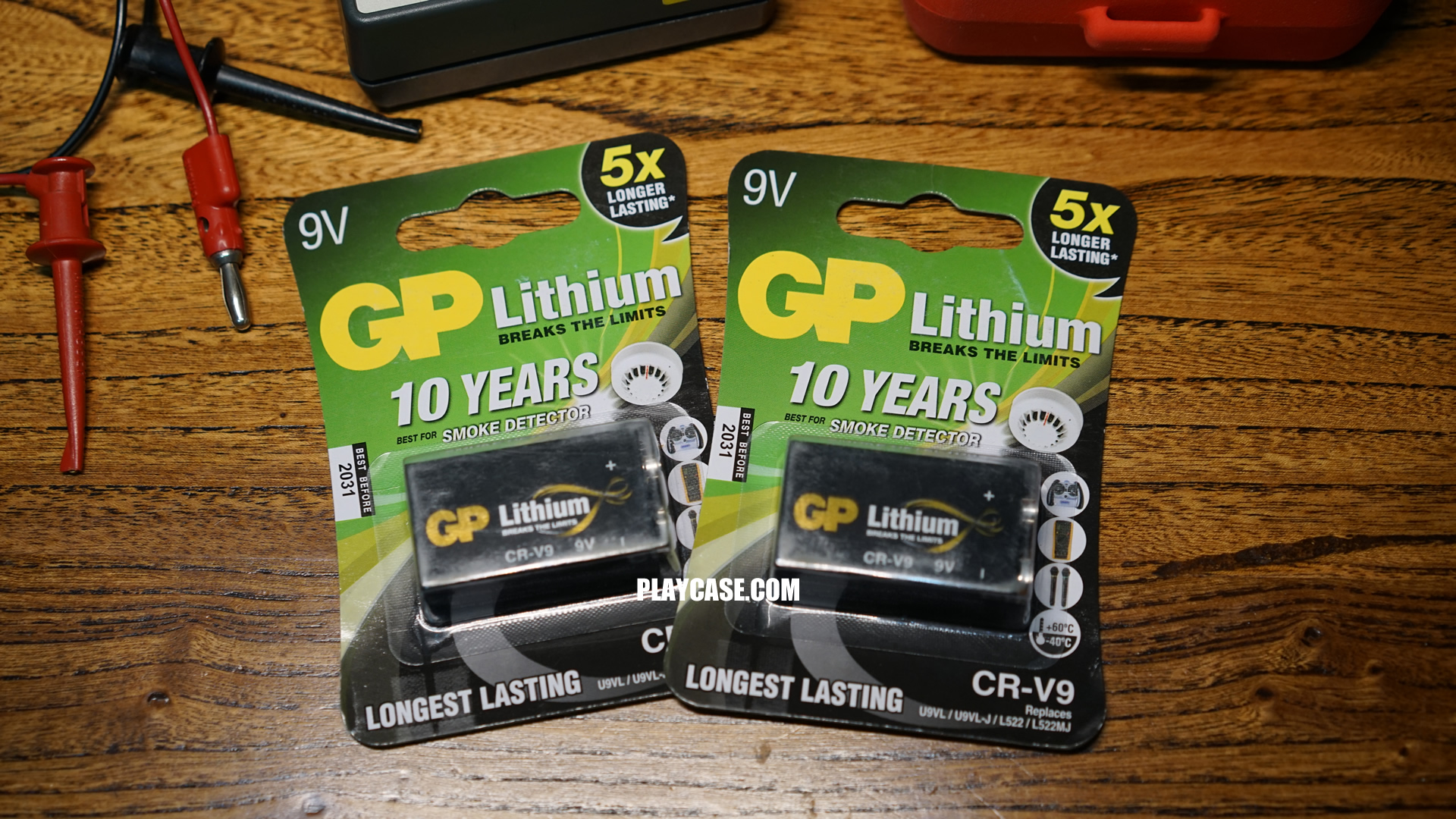

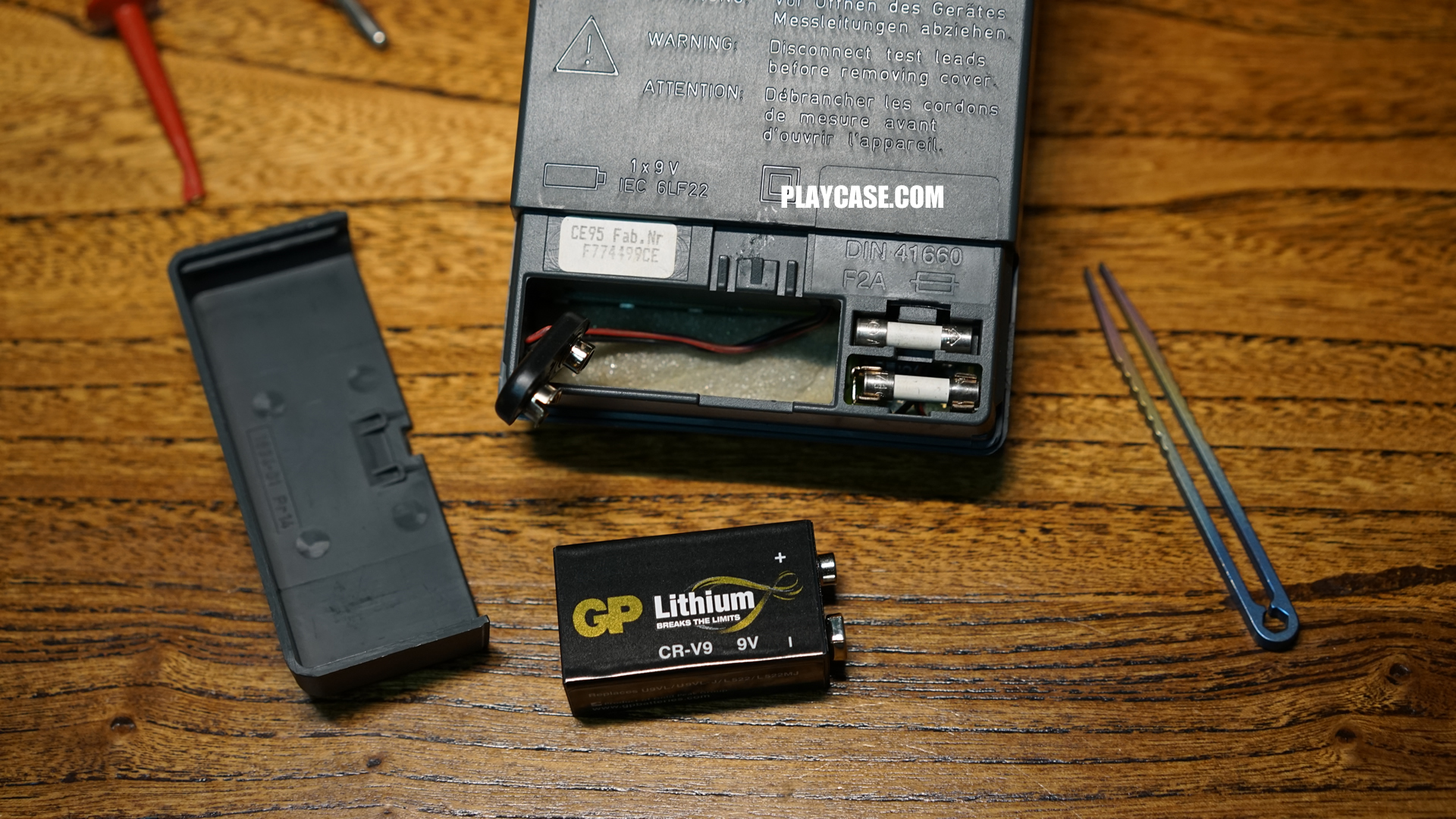

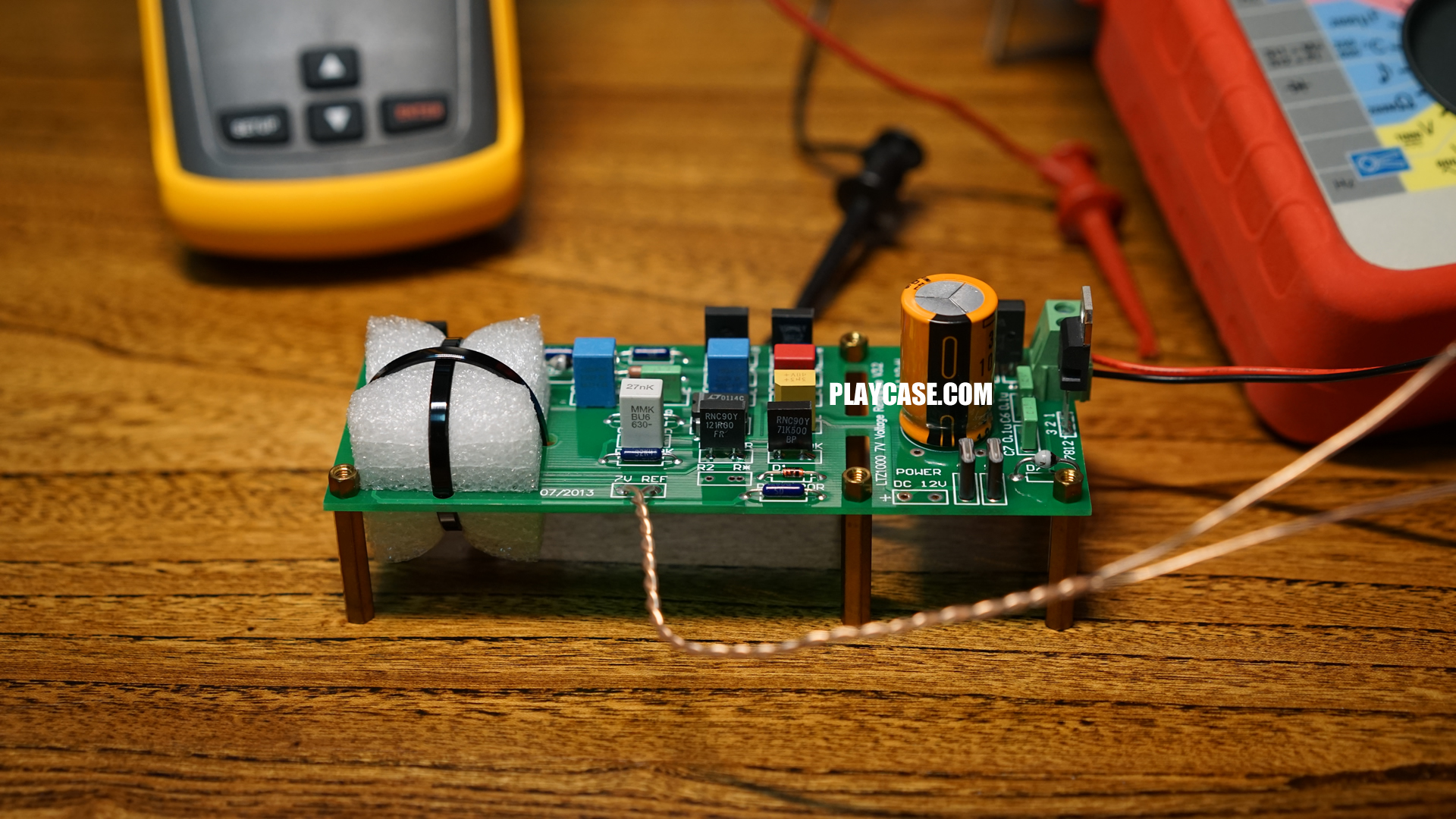

特意买了GP 9V锂电池(没有漏液困扰),完美开机!拆电池盖需要技巧,熟练后很容易。各档位流畅,应该几十年没校准过,于是拿出LTZ1000基准看一下精度(11° 6位半标定7.06519V),表显7.065v!只能用震惊形容!一字不差。

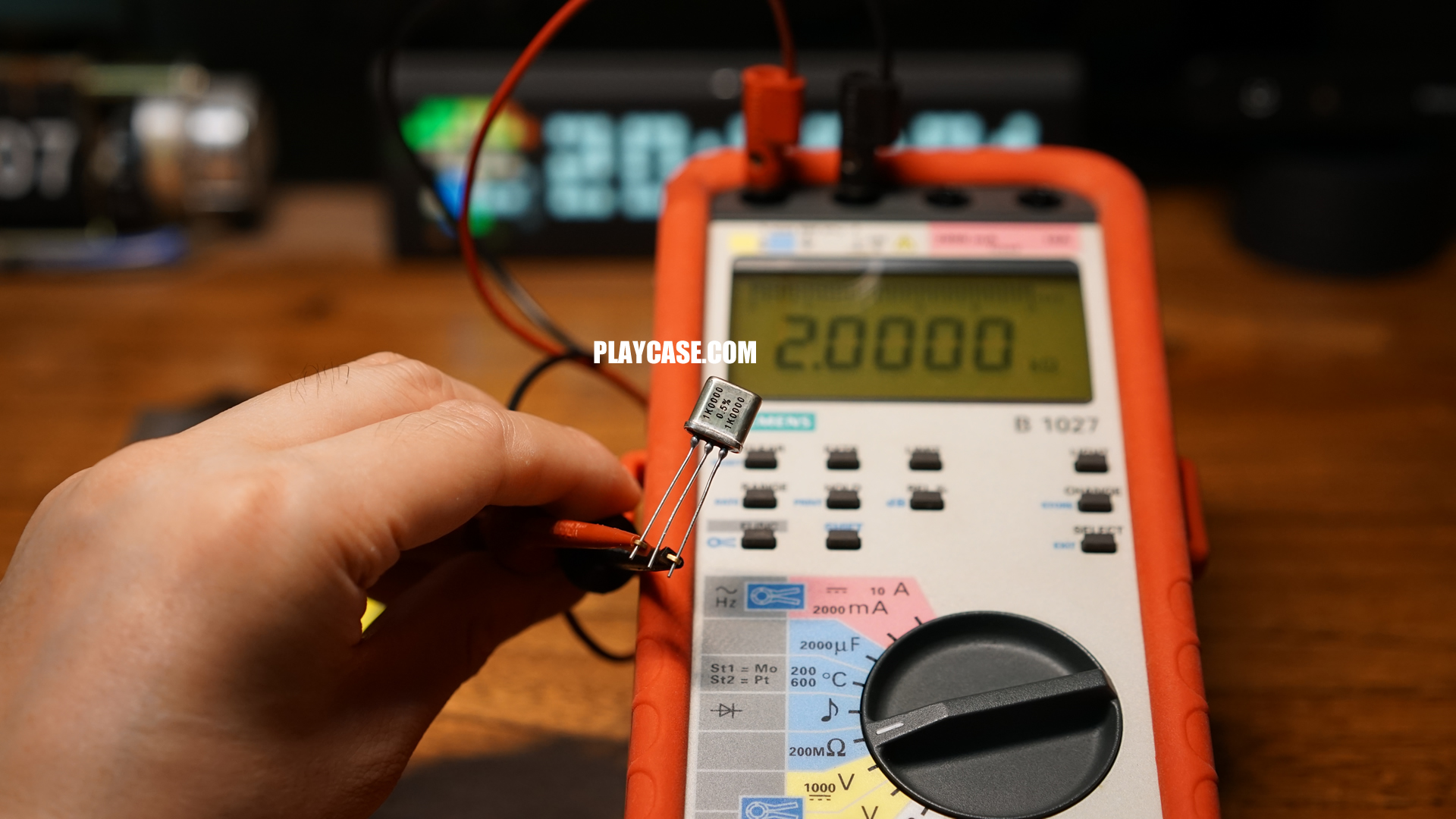

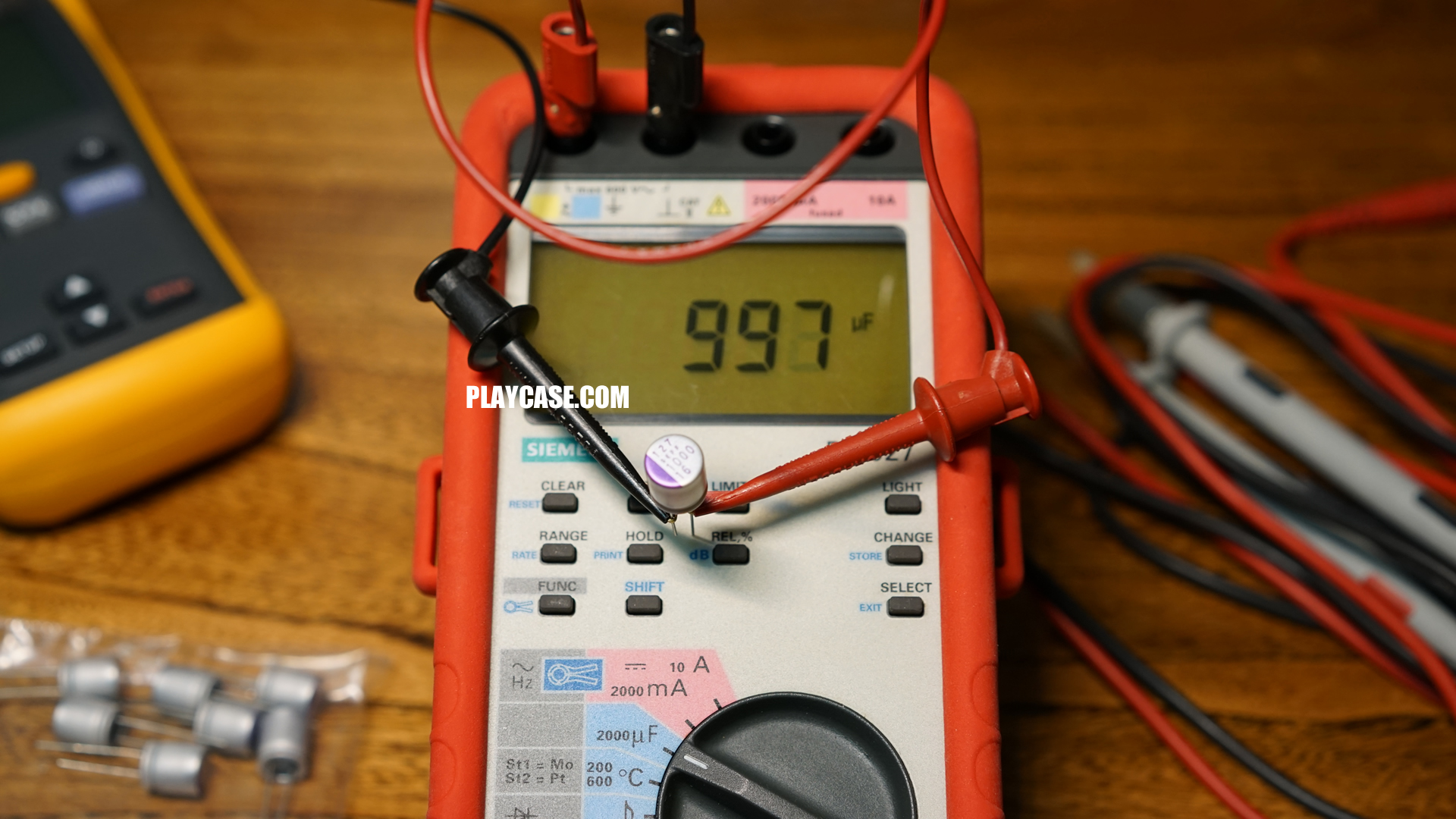

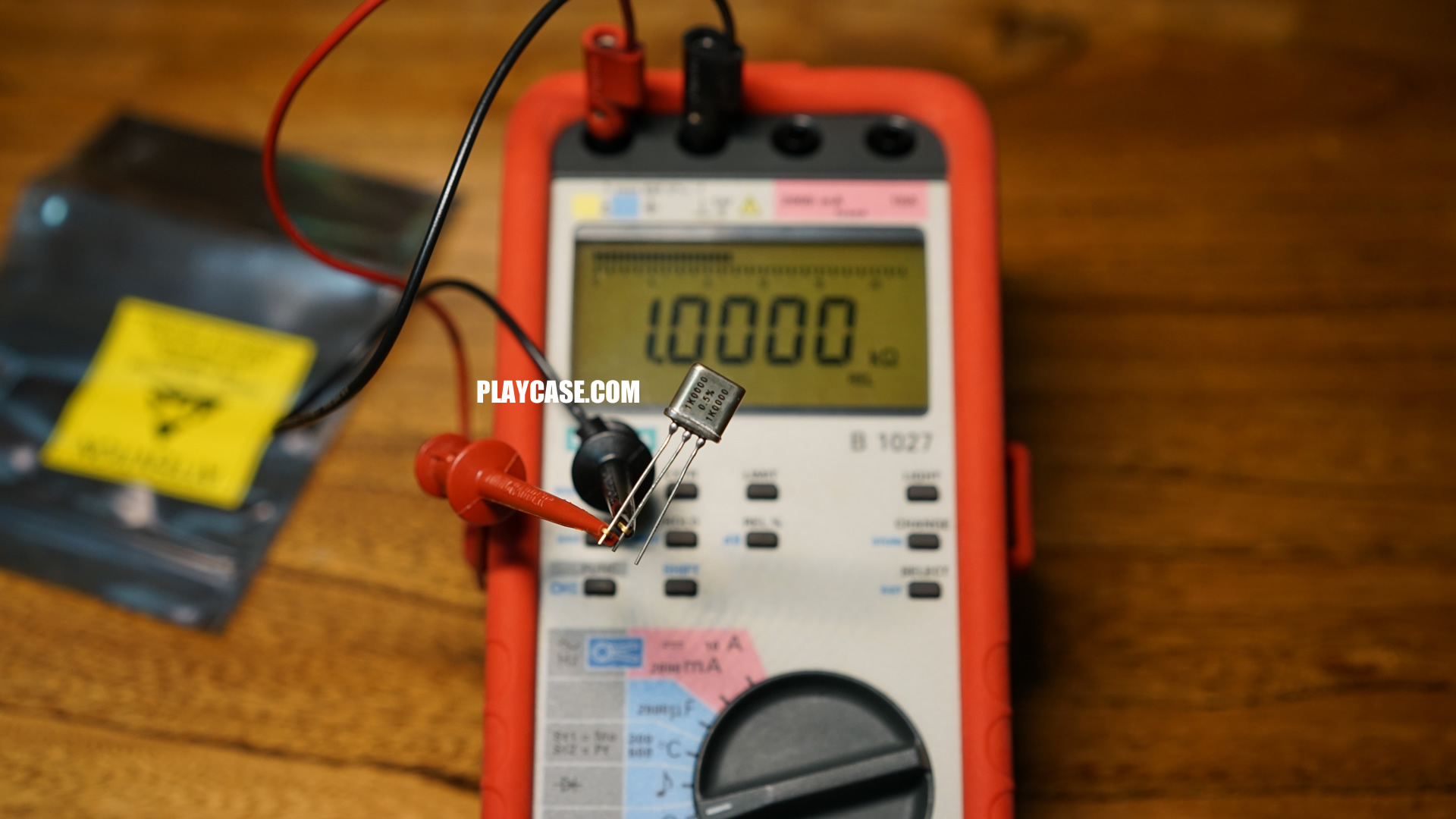

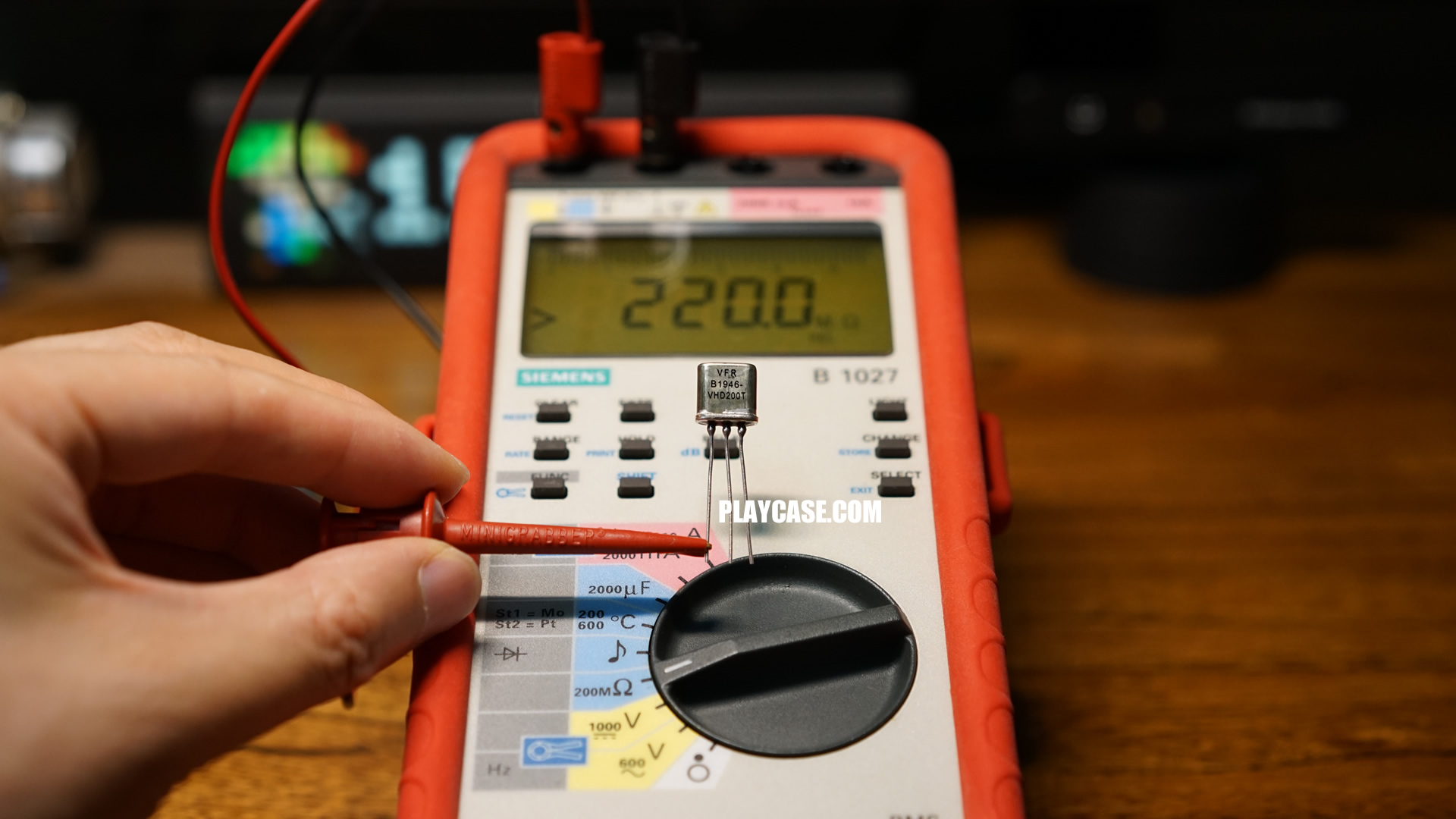

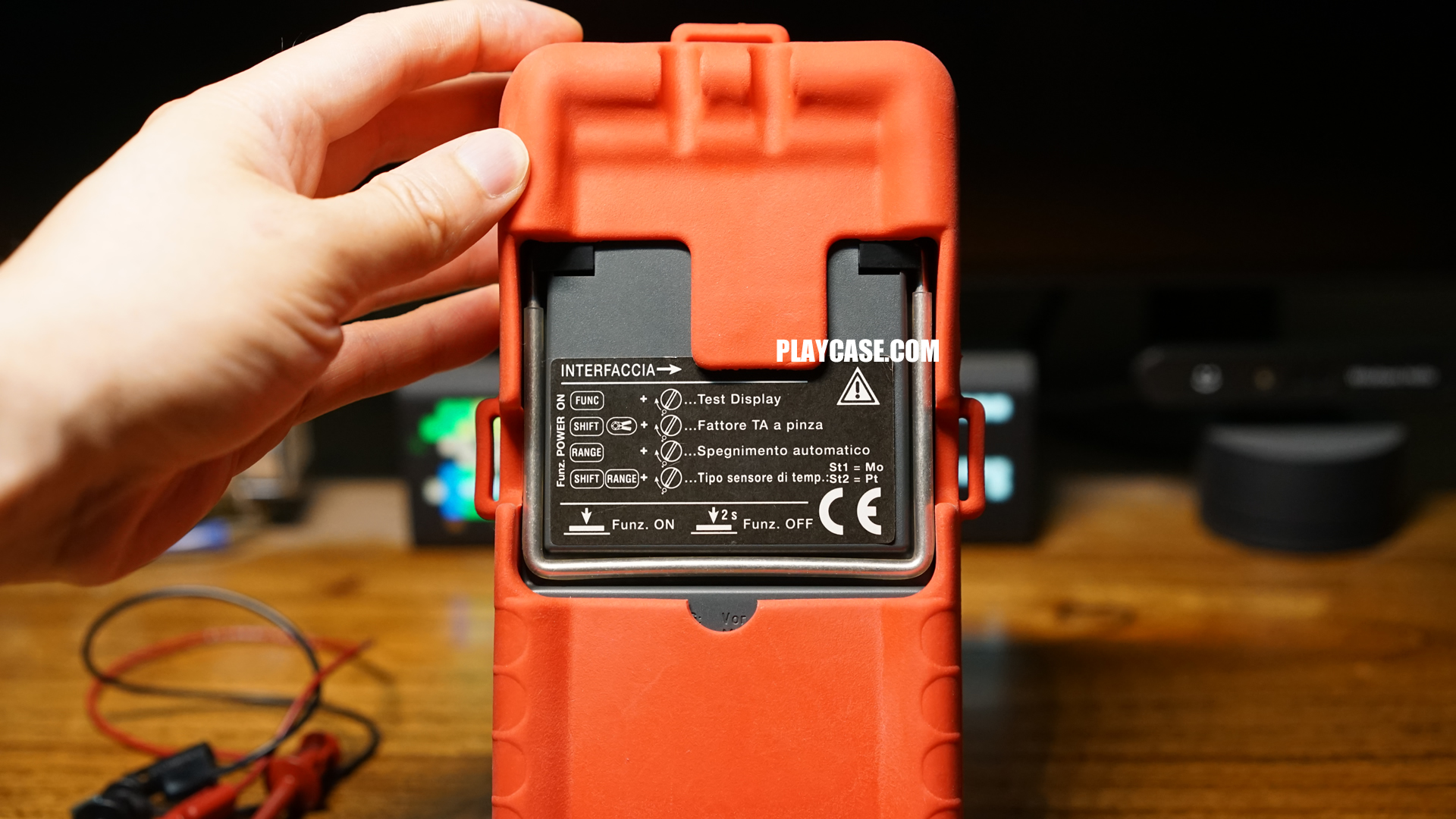

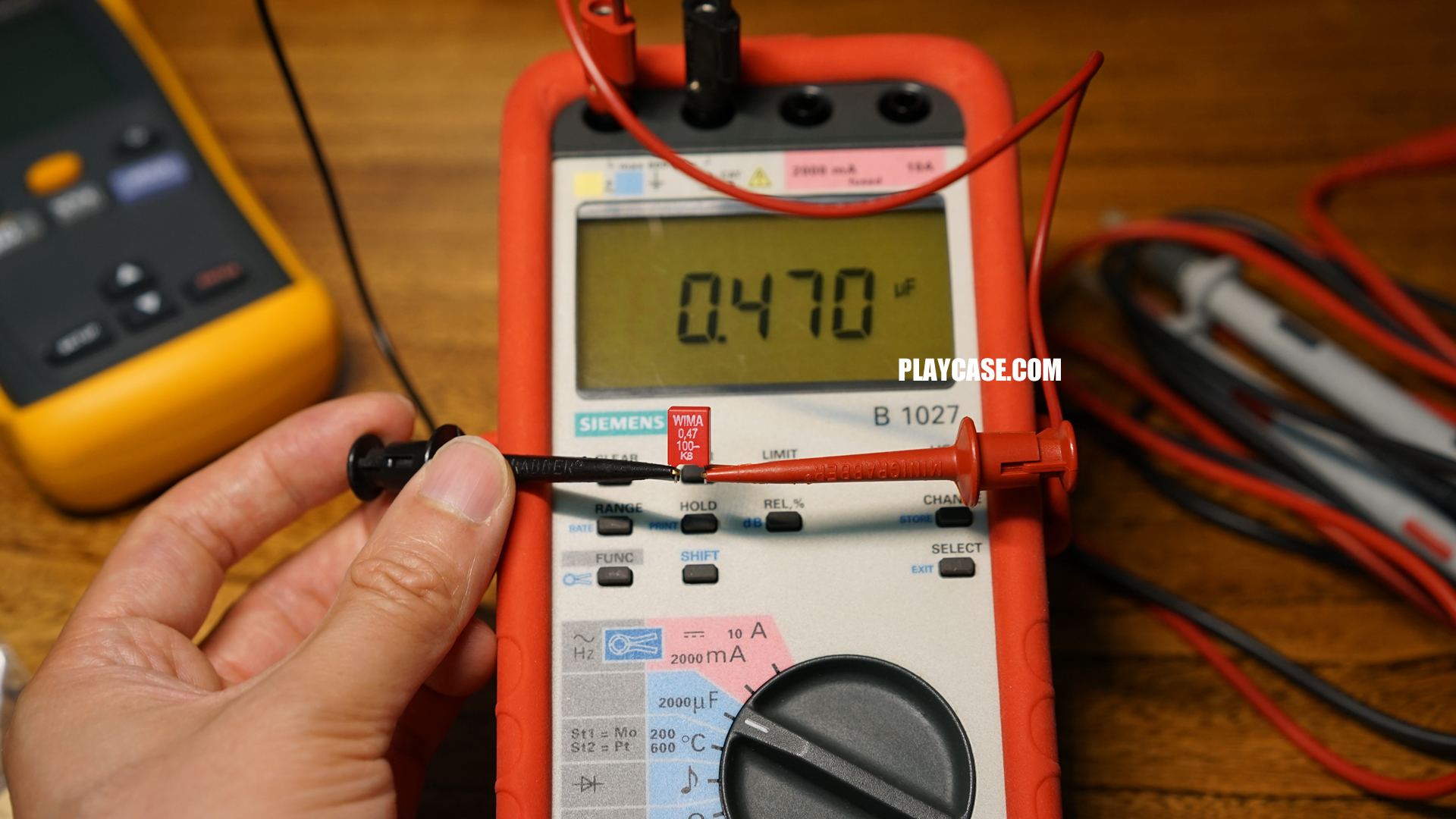

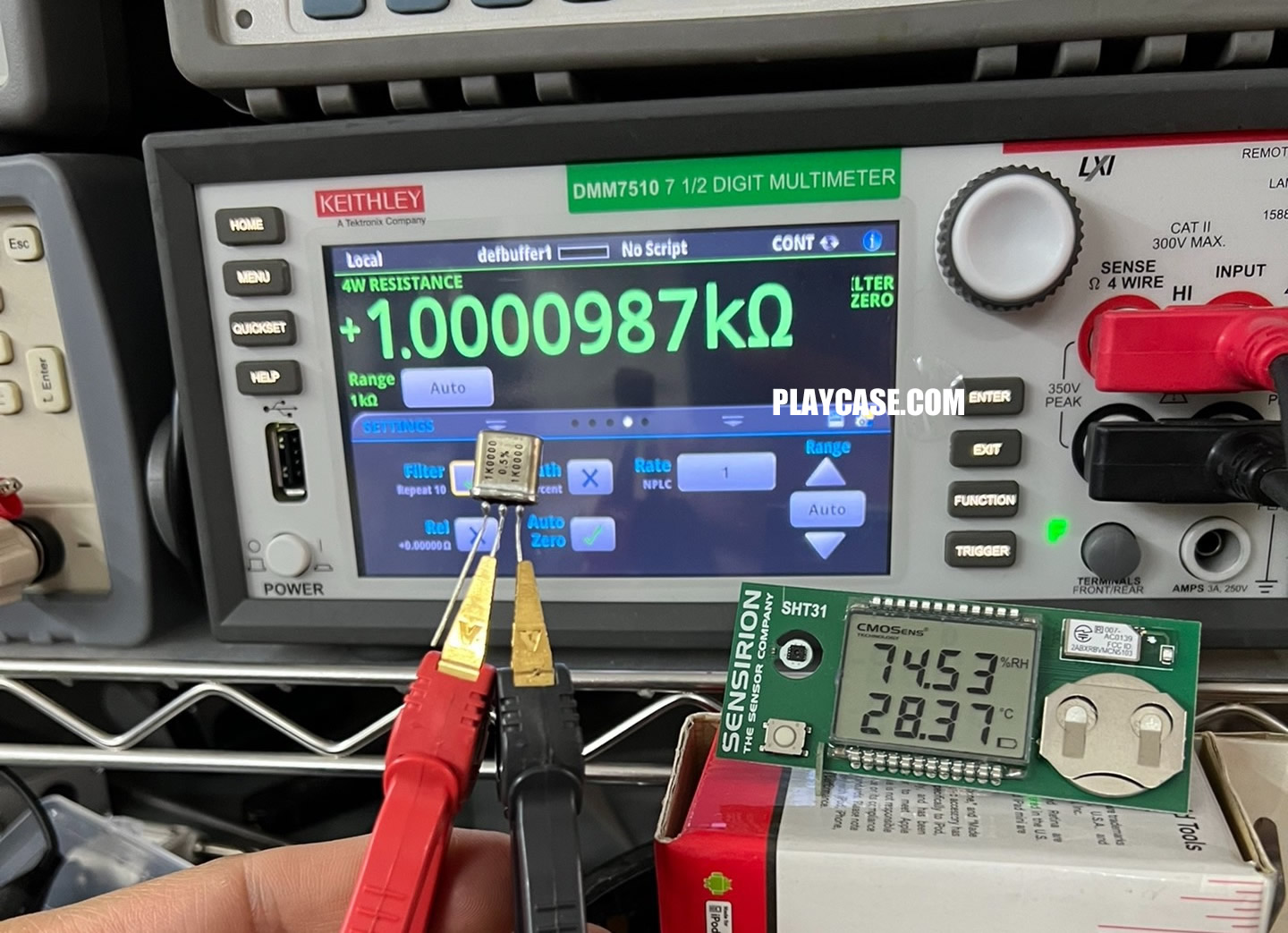

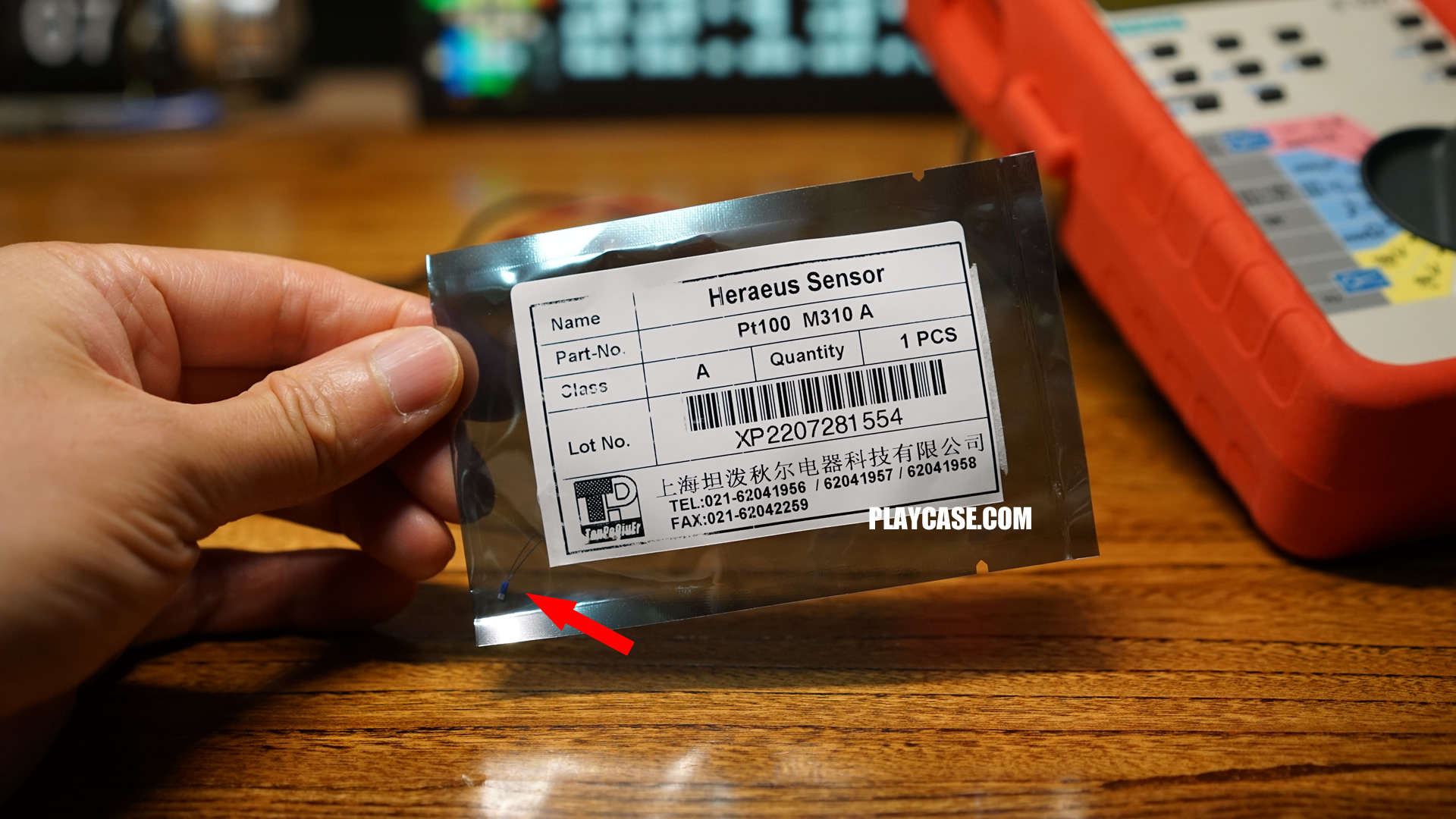

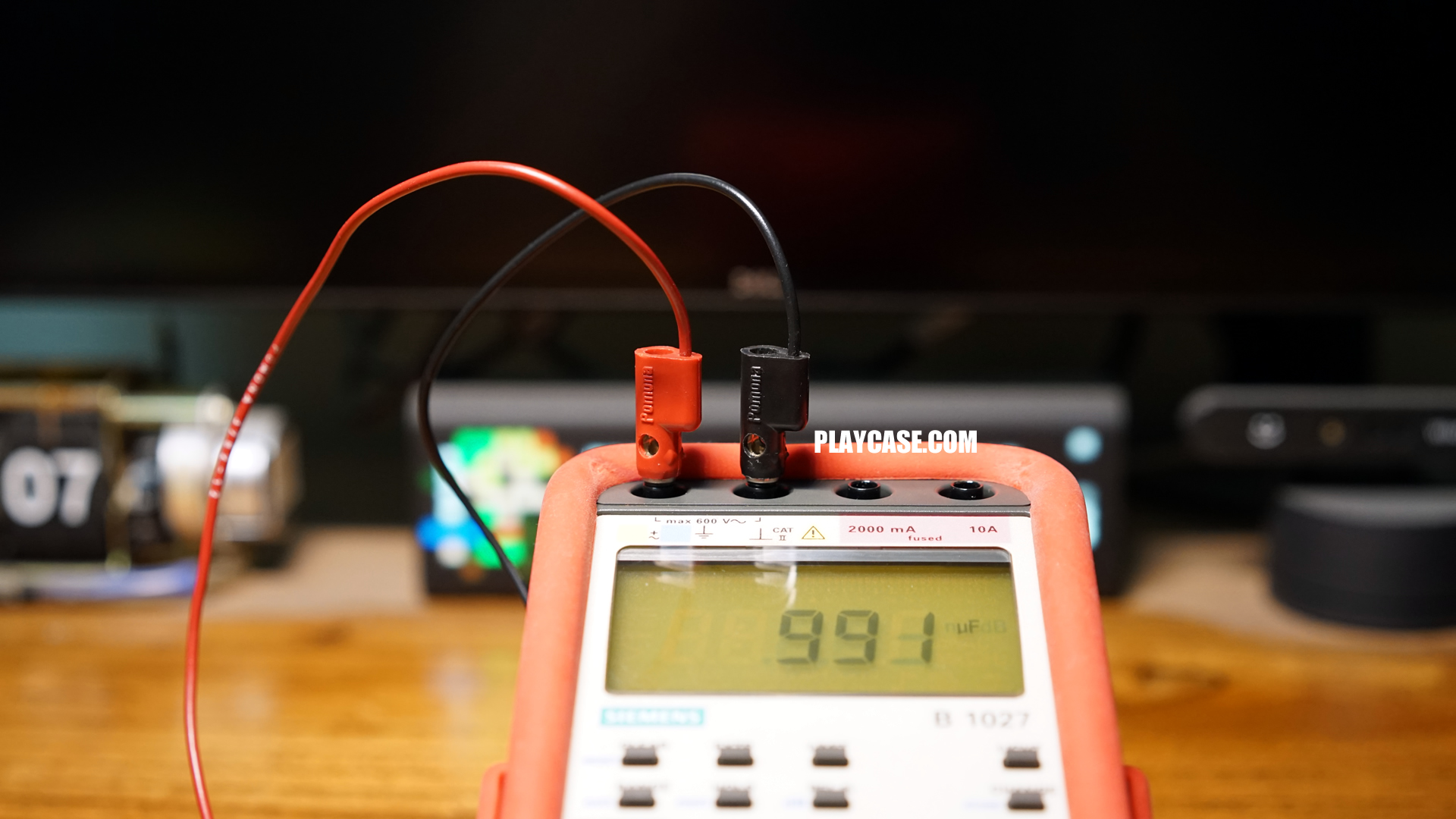

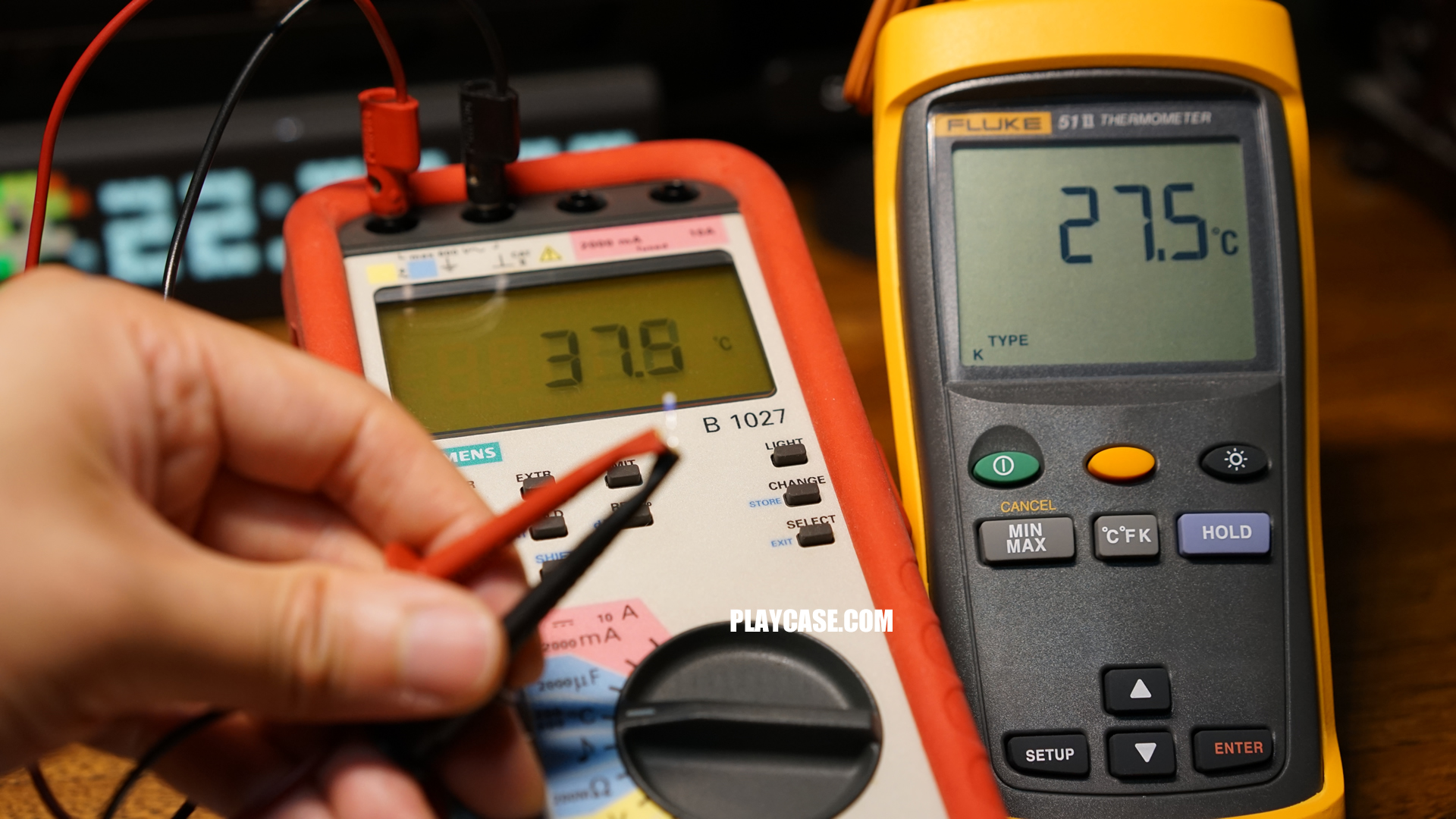

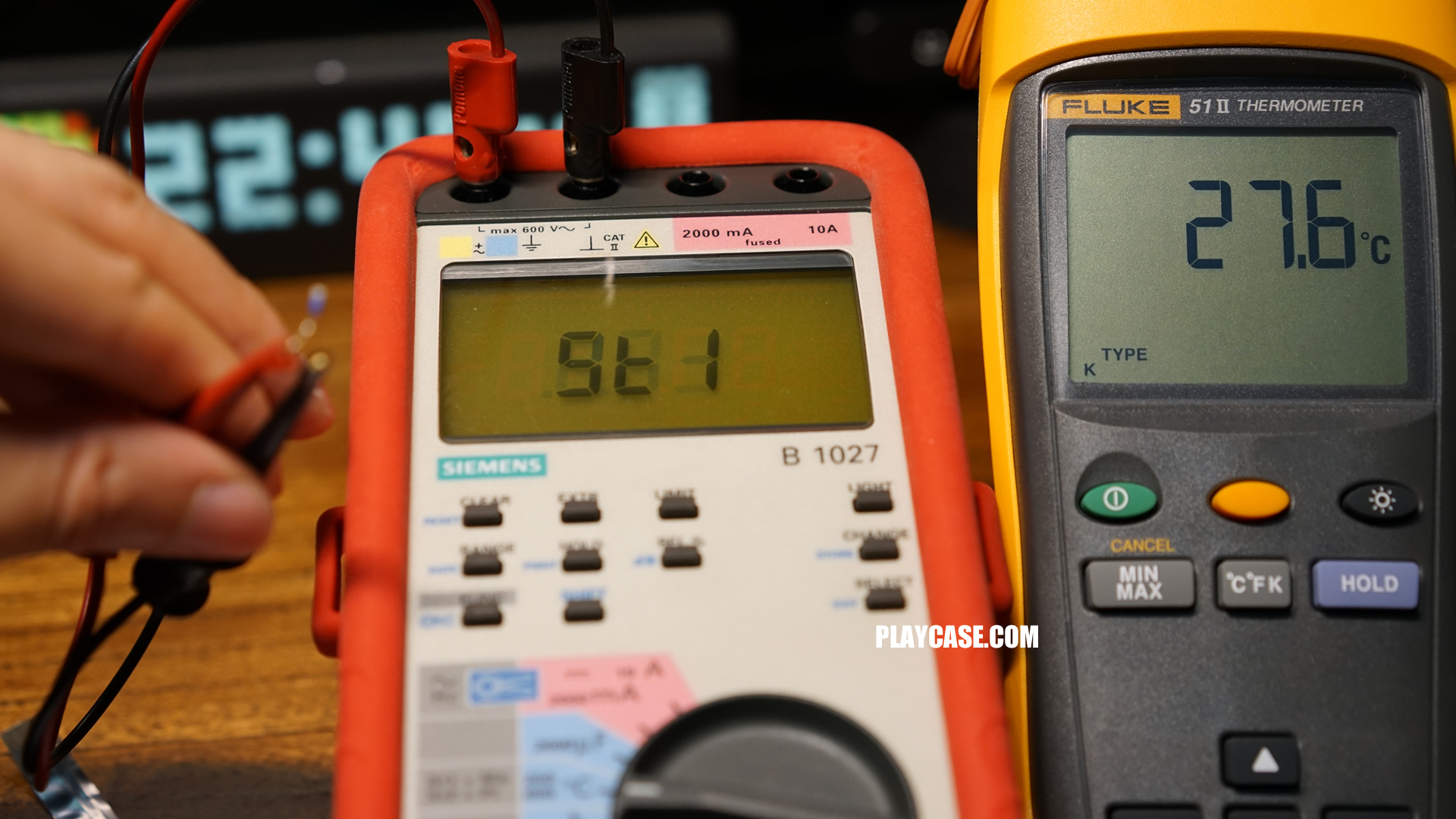

测了几个电容也非常准,电阻测的金封VHD200T 1K000,同样一字不差。温度档标识St1=Mo St2=Pt,并不是常见的K型电偶,决定试试PT100,网购了Heraeus PT100 M310A铂热电阻,果然可以显示温度,但和实际差整10°,不知是不是模式不对,尝试切换St1到St2,一直没成功。

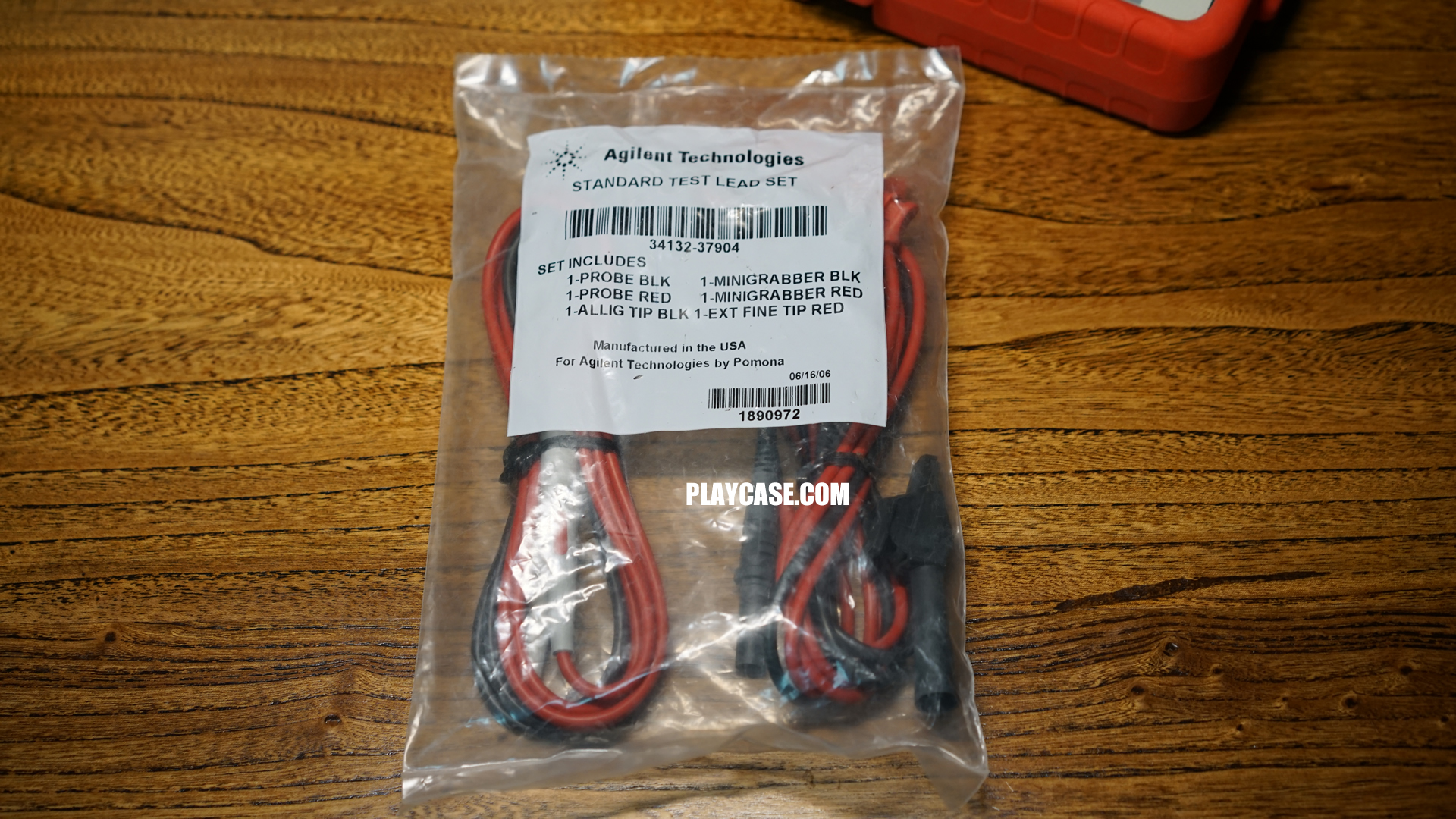

可惜原配表笔不在了,同样找了个古董美产安捷伦34132-37904表笔,虽然未拆封,但毕竟16年了,氧化非常严重,表笔联通都有问题,线阻大的离谱,用砂纸打磨了很久才恢复正常。

11年前中的毒:来个绝版的 B1027西门子万用表拆解
http://bbs.mydigit.cn/read.php?tid=252696

uploads/202207/30_135419_17.jpg

uploads/202207/30_135251_1.jpg

uploads/202207/30_135255_2.jpg

uploads/202207/30_135259_3.jpg

uploads/202207/30_135303_4.jpg

uploads/202207/30_135306_5.jpg

uploads/202207/30_135311_6.jpg

uploads/202207/30_135316_7.jpg

uploads/202207/30_135320_8.jpg

uploads/202207/30_135324_9.jpg

uploads/202207/30_135328_10.jpg

uploads/202207/30_135337_11.jpg

uploads/202207/30_135353_12.jpg

uploads/202207/30_135358_13.jpg

uploads/202207/30_135403_14.jpg

uploads/202207/30_135408_15.jpg

uploads/202207/30_135414_16.jpg

uploads/202207/30_135419_17.jpg

uploads/202207/30_135426_18.jpg

uploads/202207/30_135439_19.jpg

uploads/202207/30_135446_20.jpg

uploads/202207/30_135451_21.jpg

uploads/202207/30_135457_22.jpg

uploads/202207/30_232334_26.jpg

uploads/202207/30_232341_27.jpg

uploads/202207/30_232345_28.jpg

uploads/202207/30_135502_23.jpg

uploads/202207/30_135507_24.jpg

uploads/202207/30_135511_25.jpg

uploads/202208/06_204125_29.jpg

uploads/202208/06_204247_32.jpg

uploads/202208/06_204131_30.jpg

uploads/202208/06_204136_31.jpg
[最后修改由 牛犊, 于 2022-08-08 13:30:16]
