LTZ1000超级电压基准

[ 2022-09-03 13:36:47 | 作者: 牛犊 ]

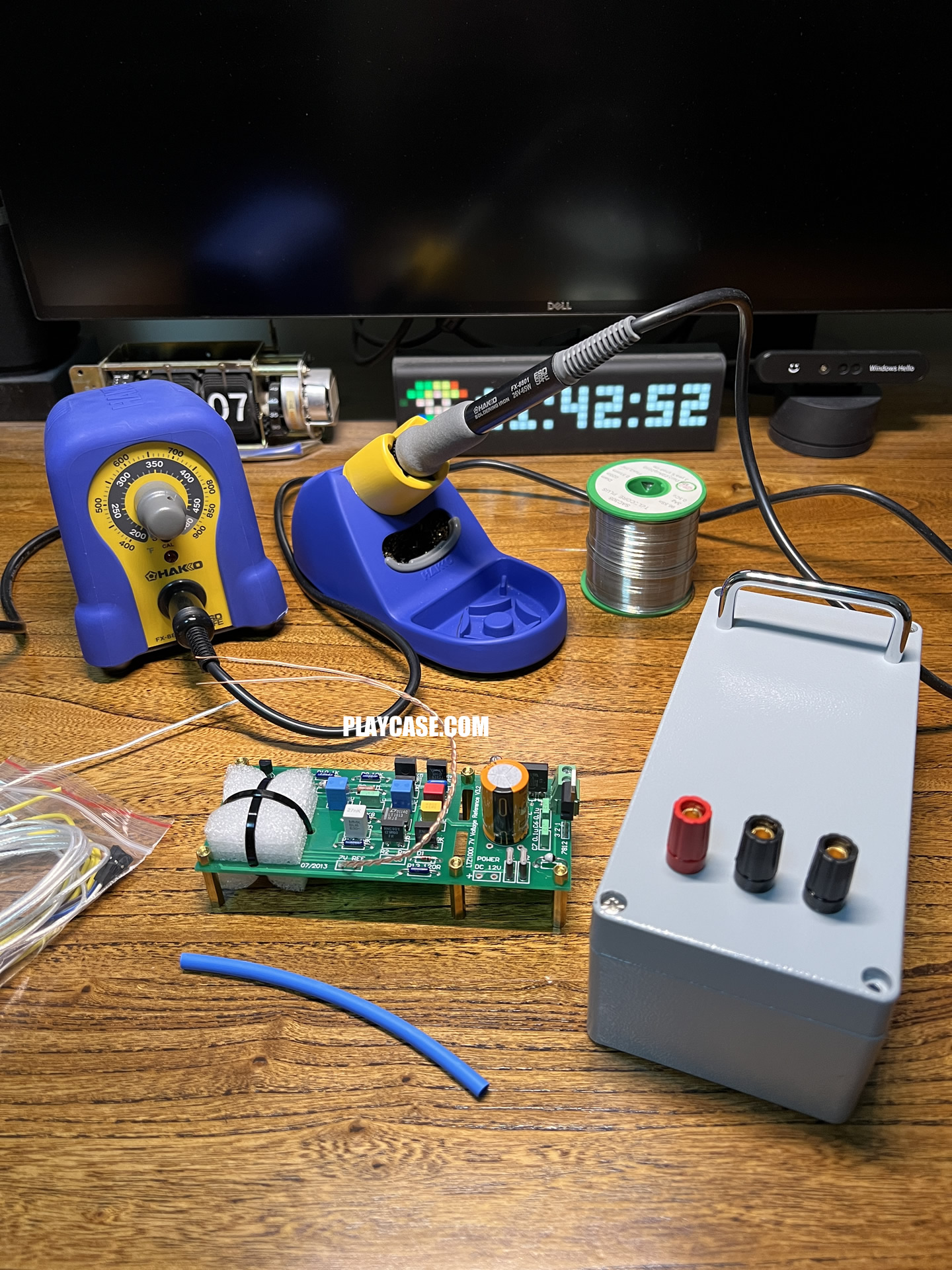

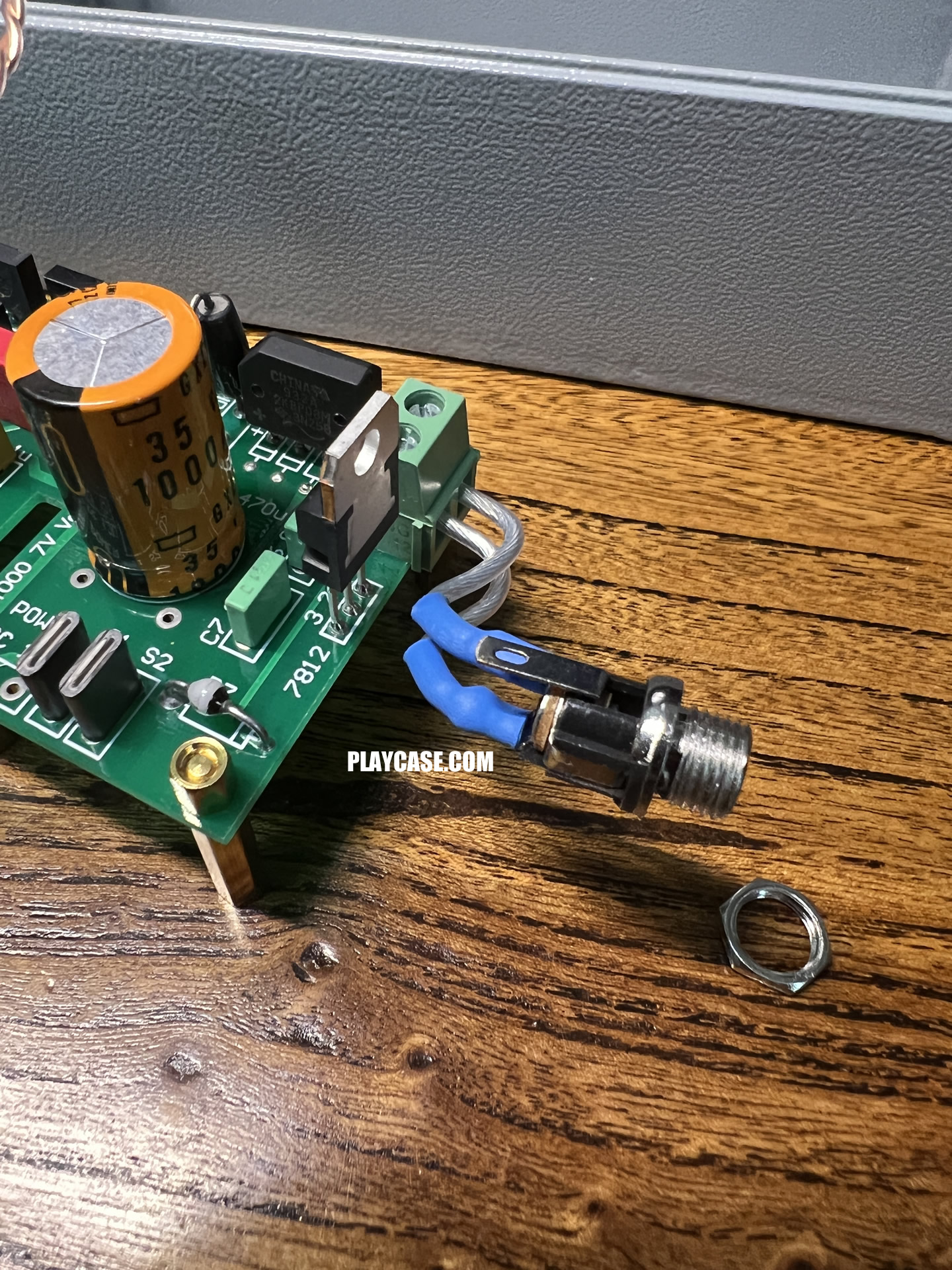

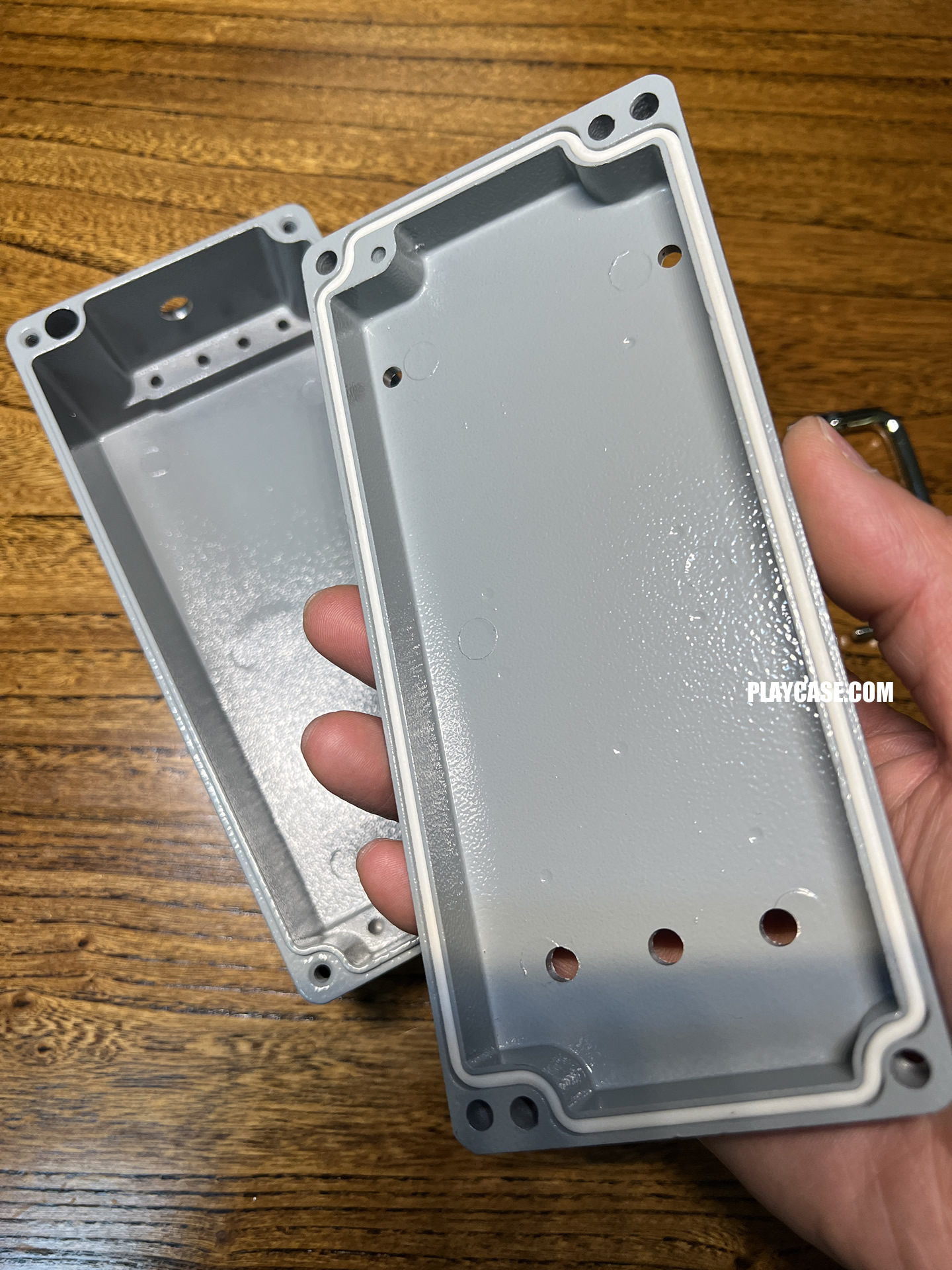

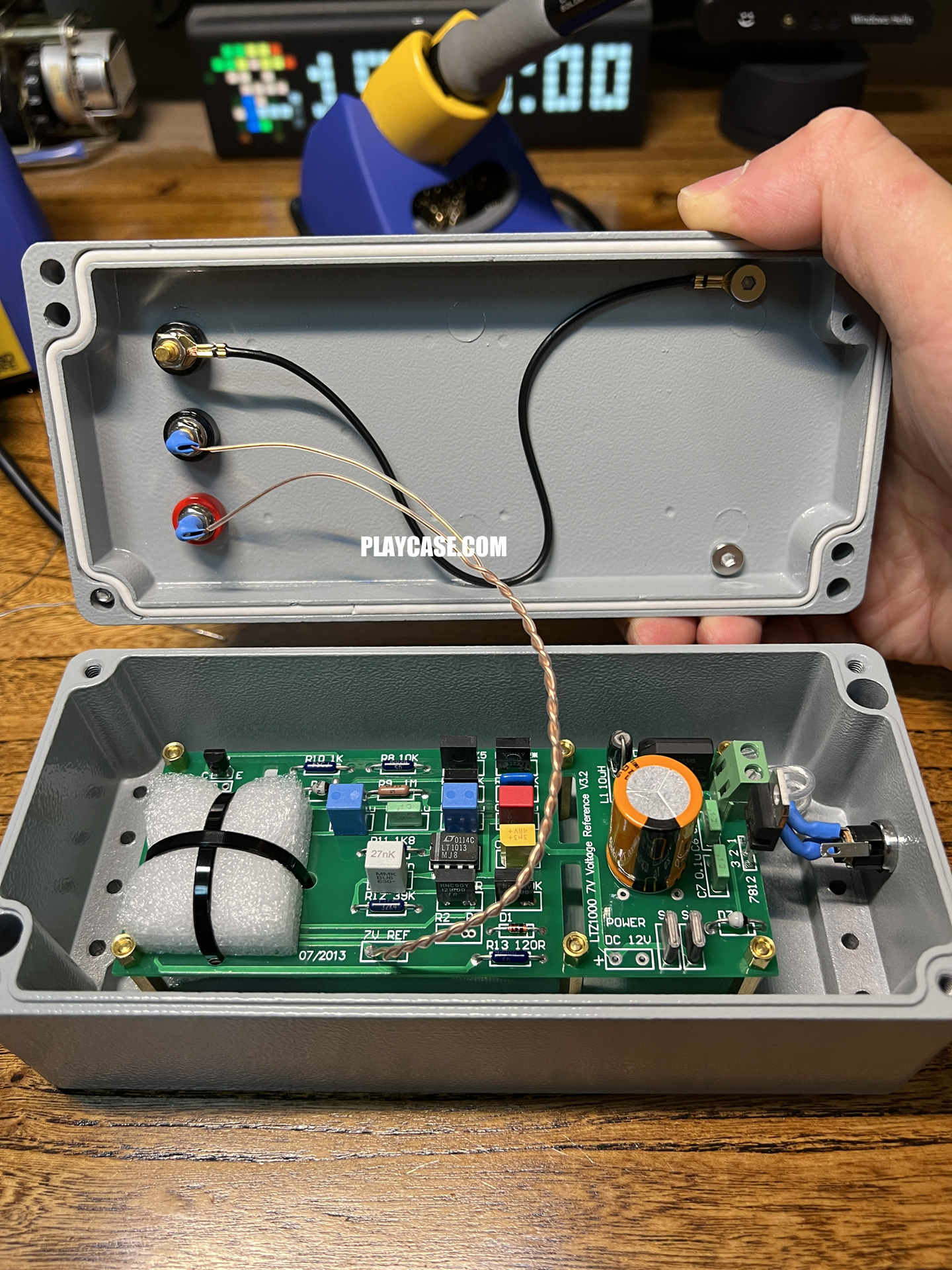

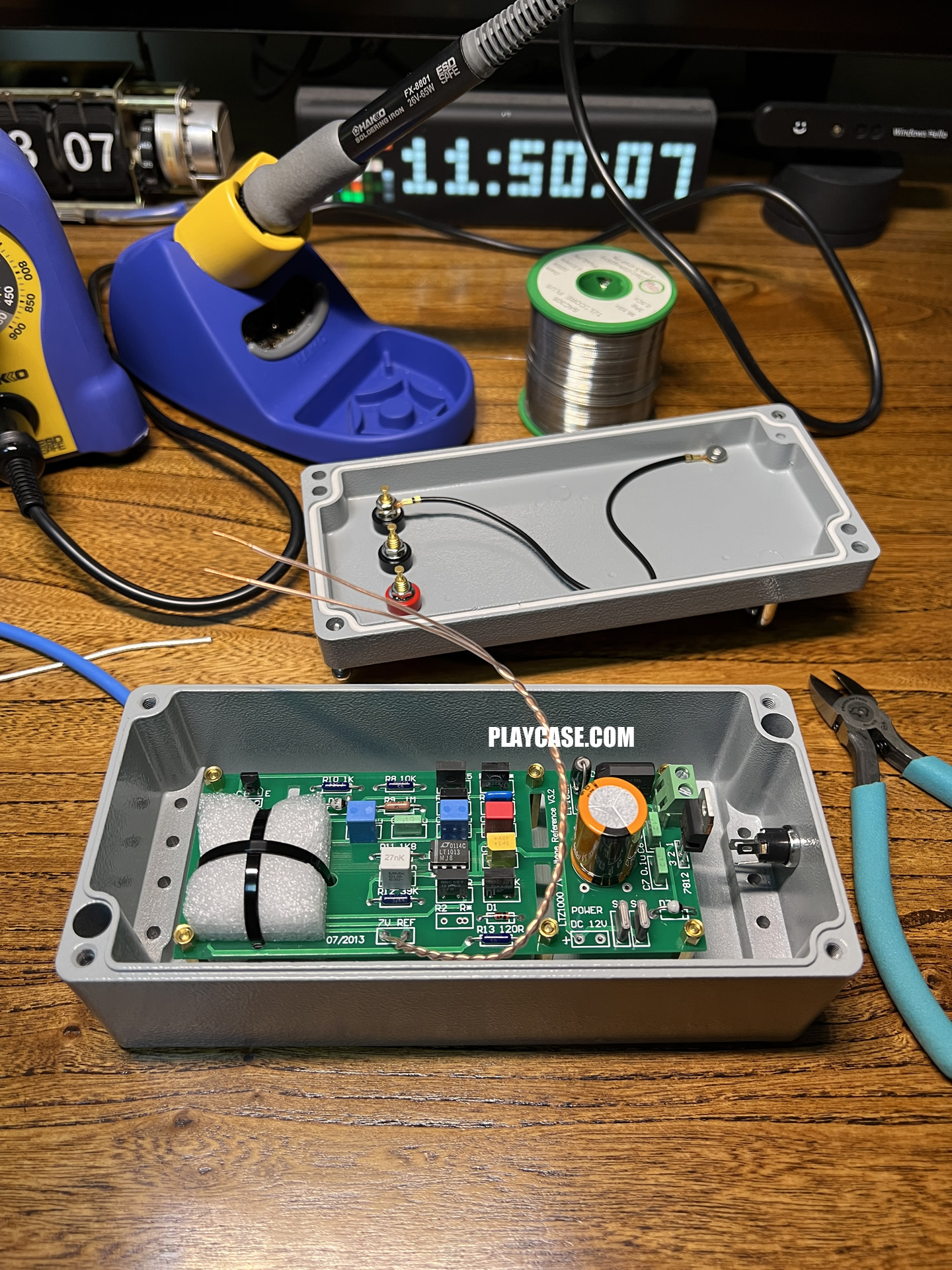

10年了,终于给LTZ1000ACH超级电压基准安家,力求完美再现当年jj3055大神的自用基准,简单画了设计图,铸铝盒用数字机床打孔,精准无误~

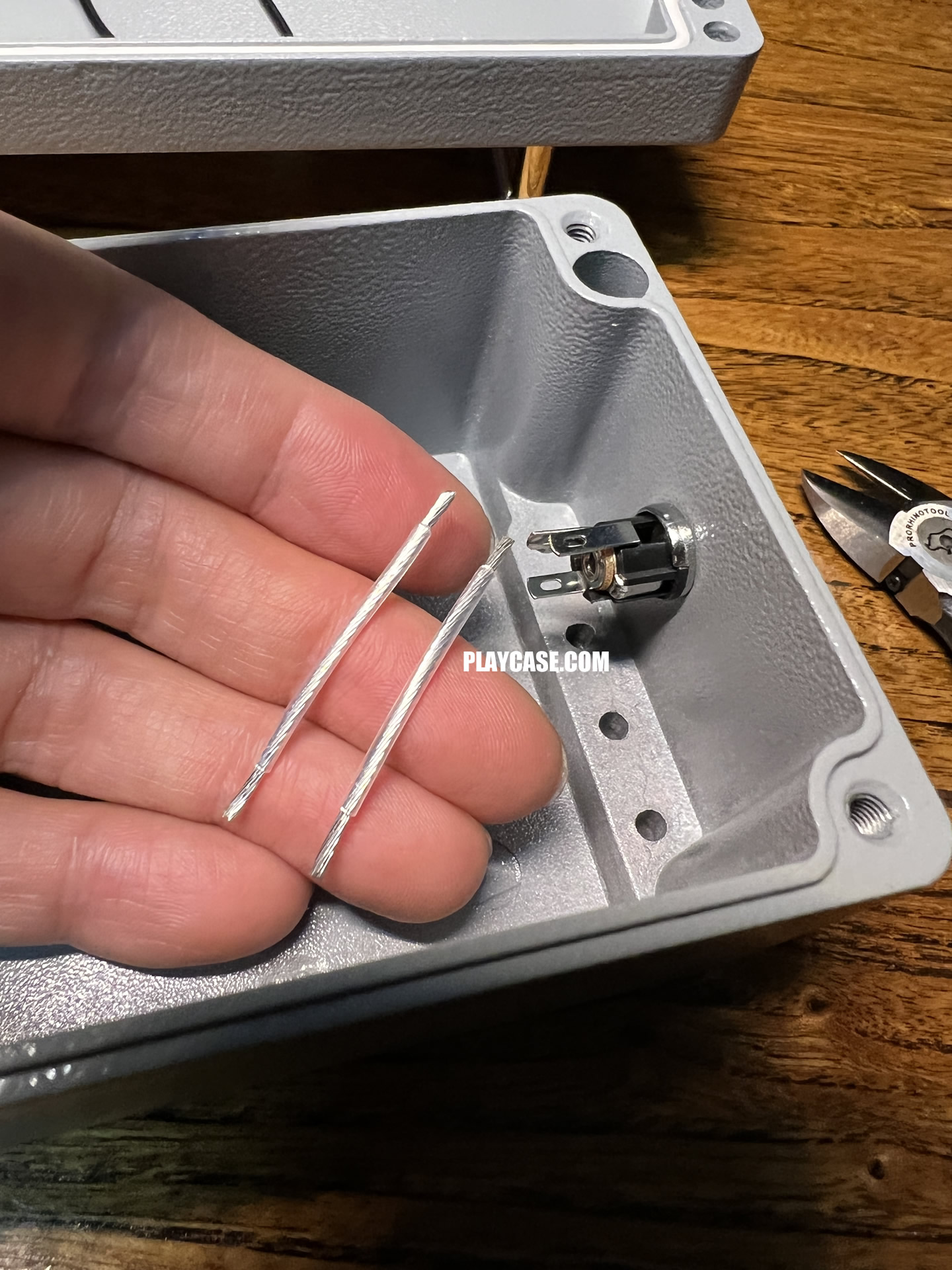

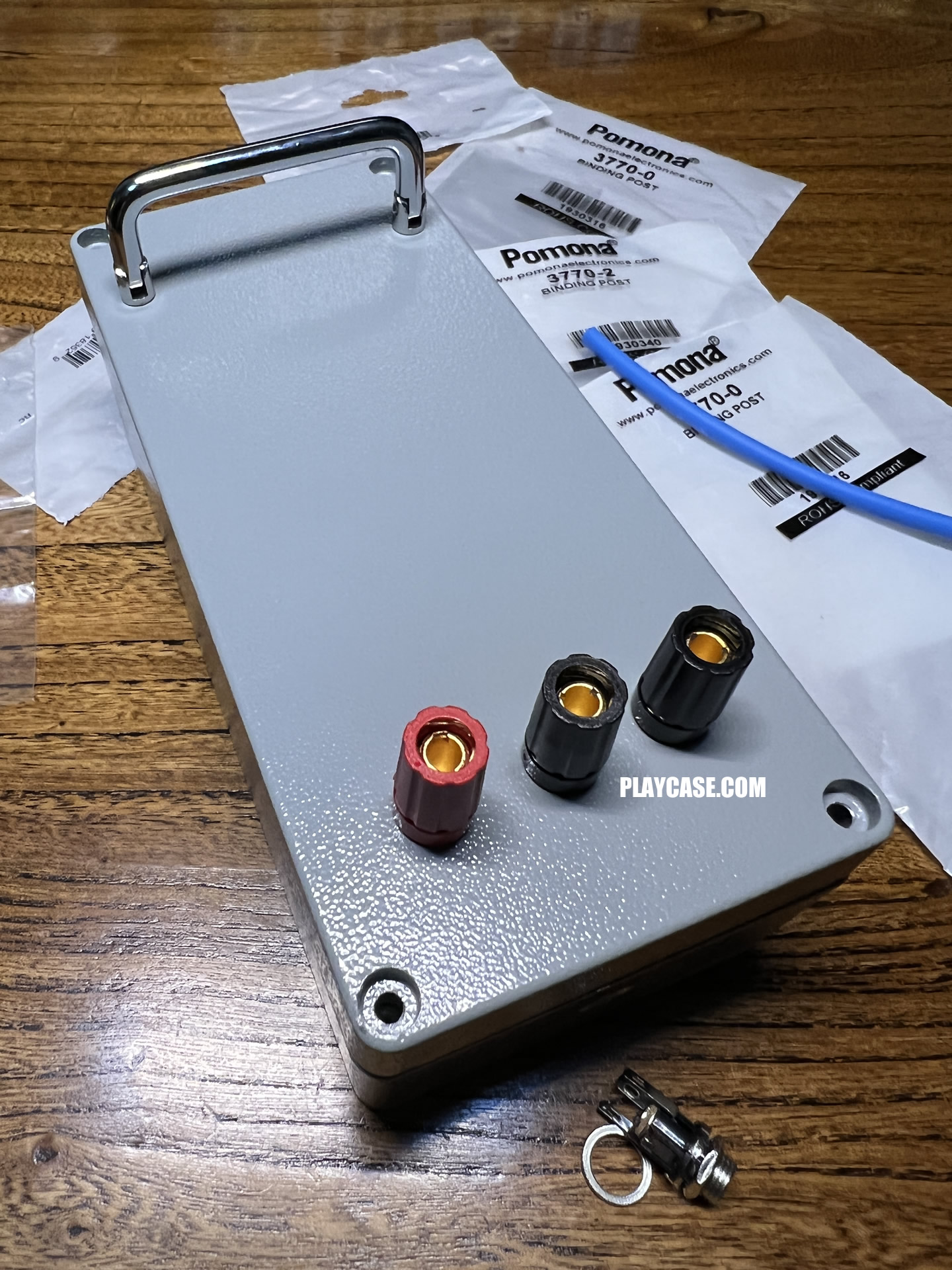

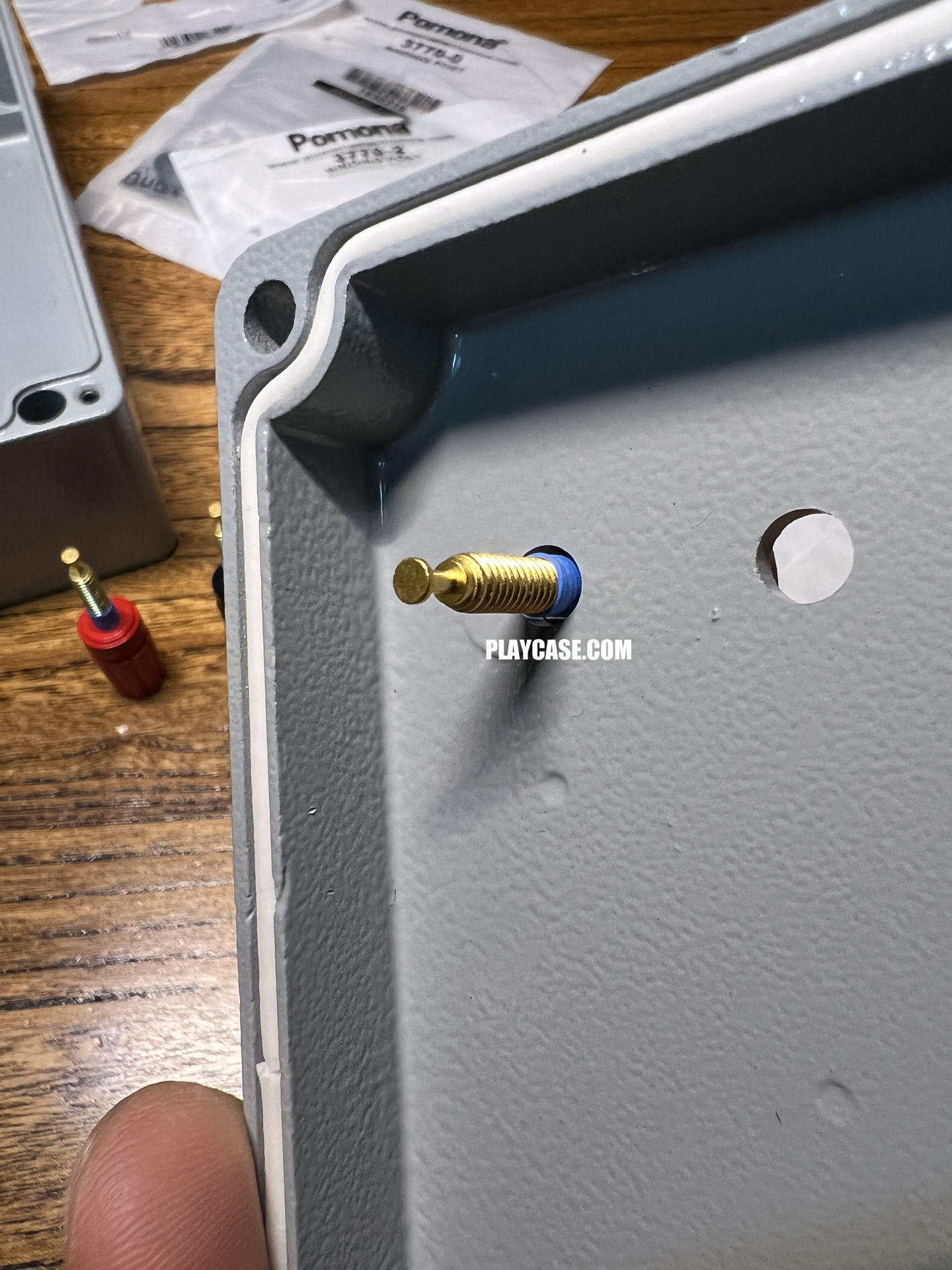

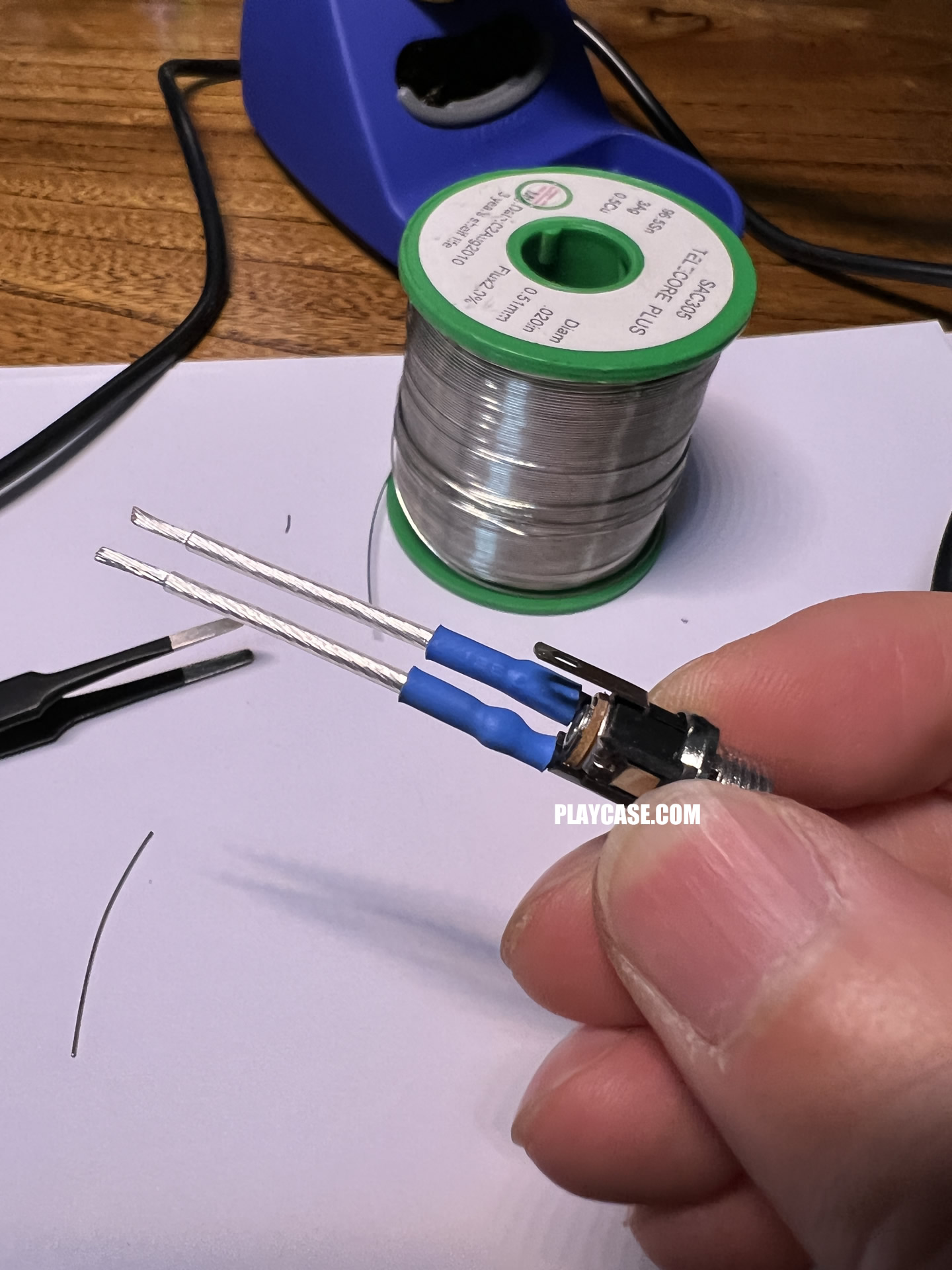

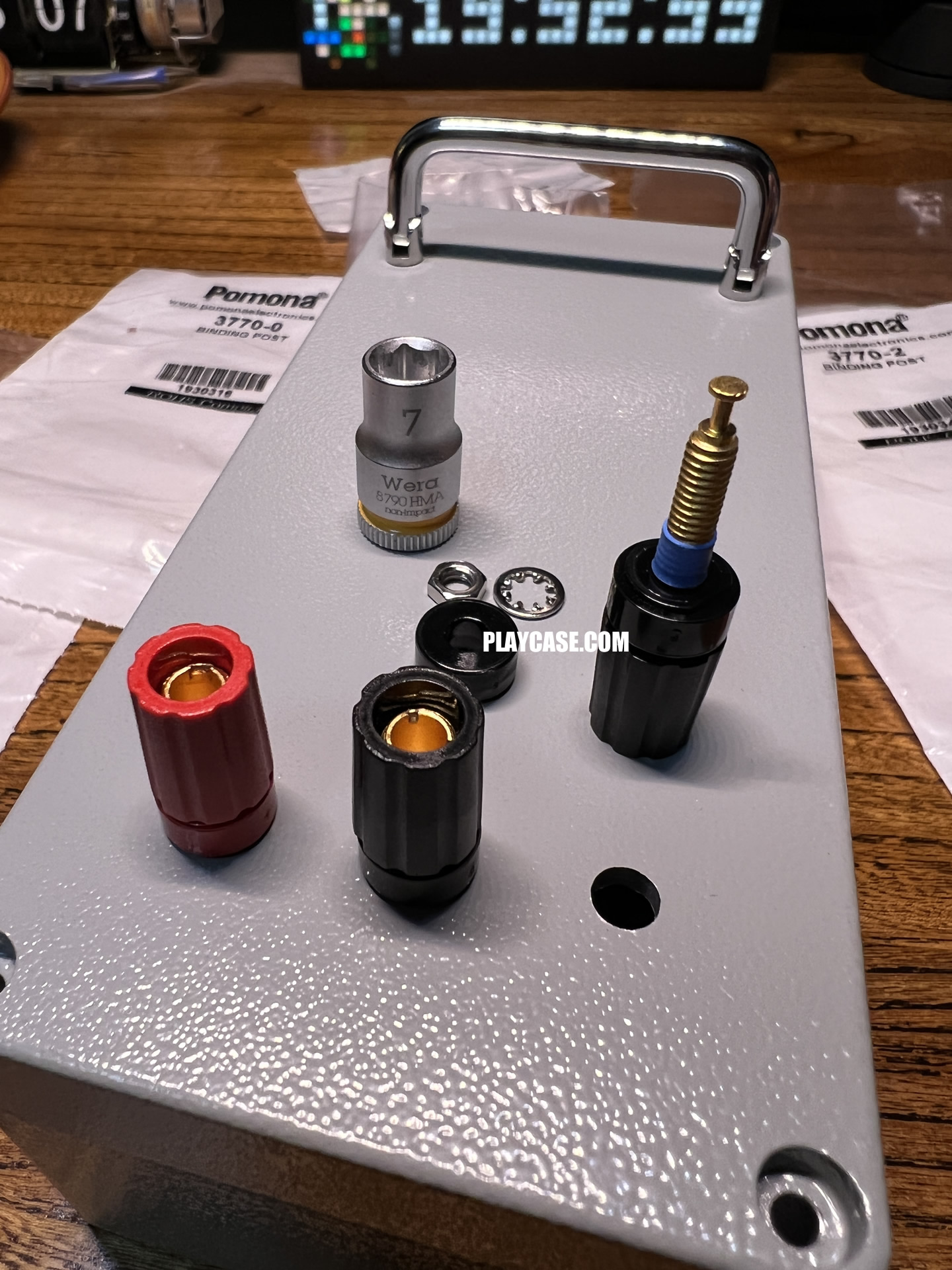

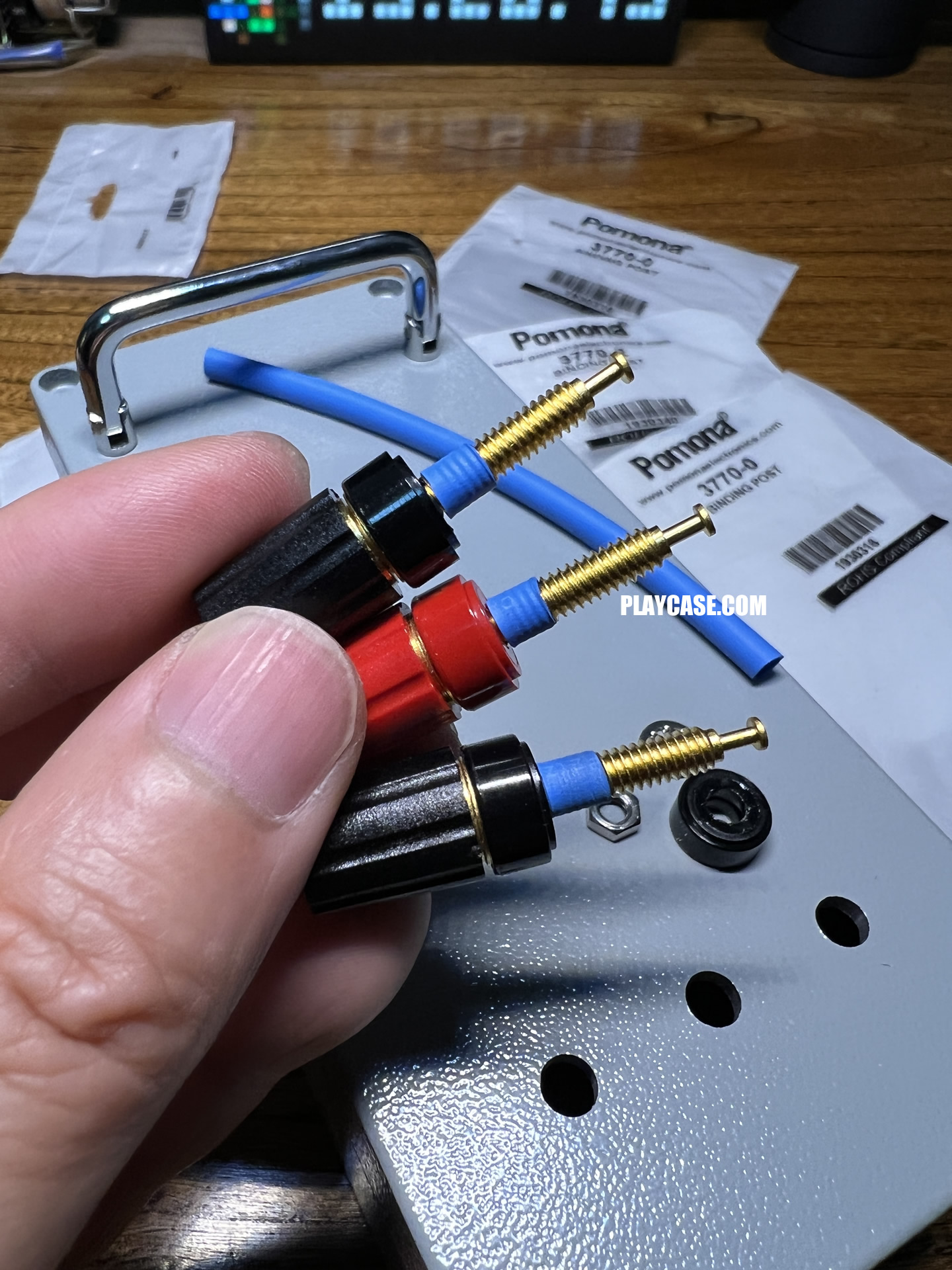

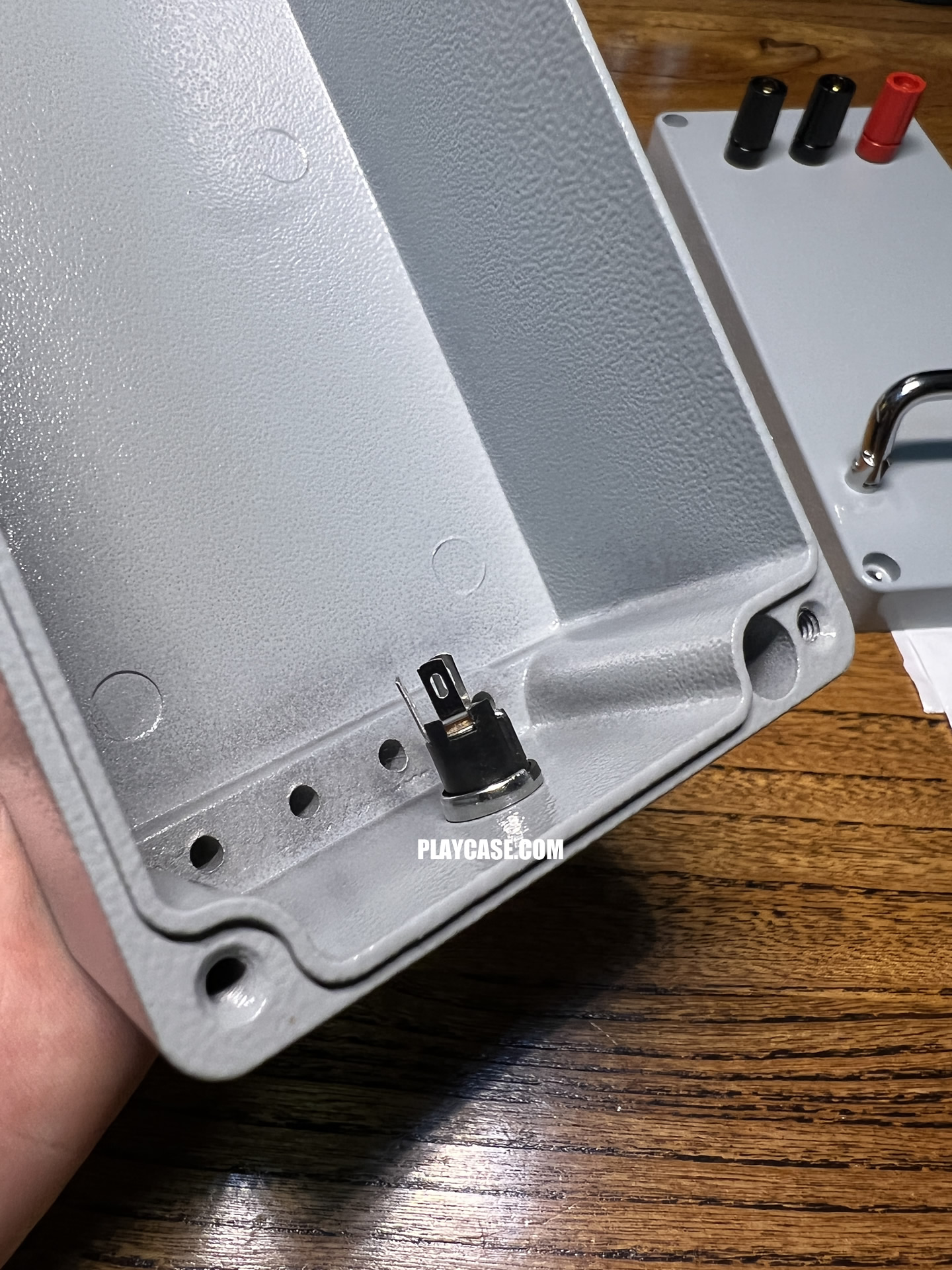

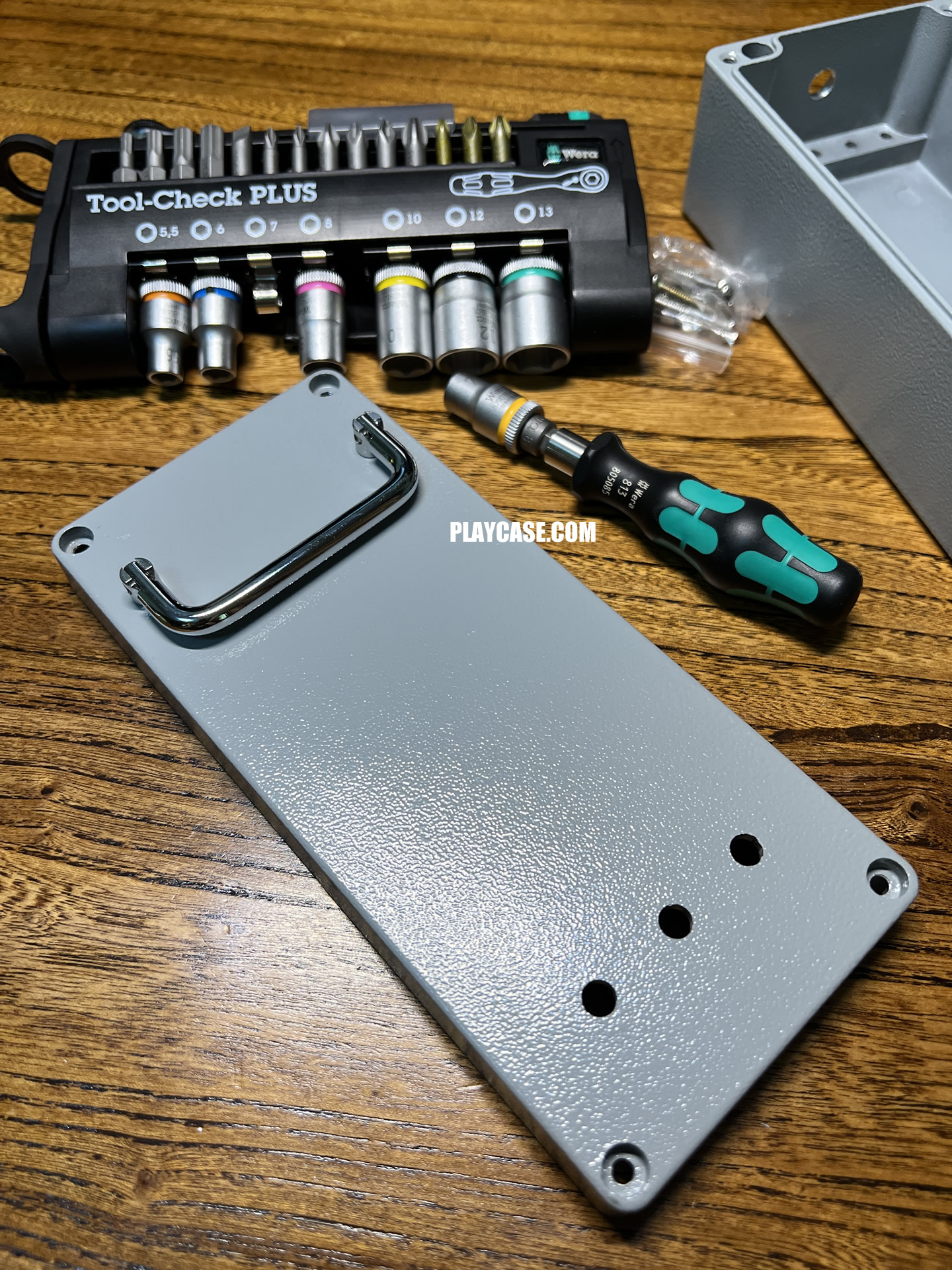

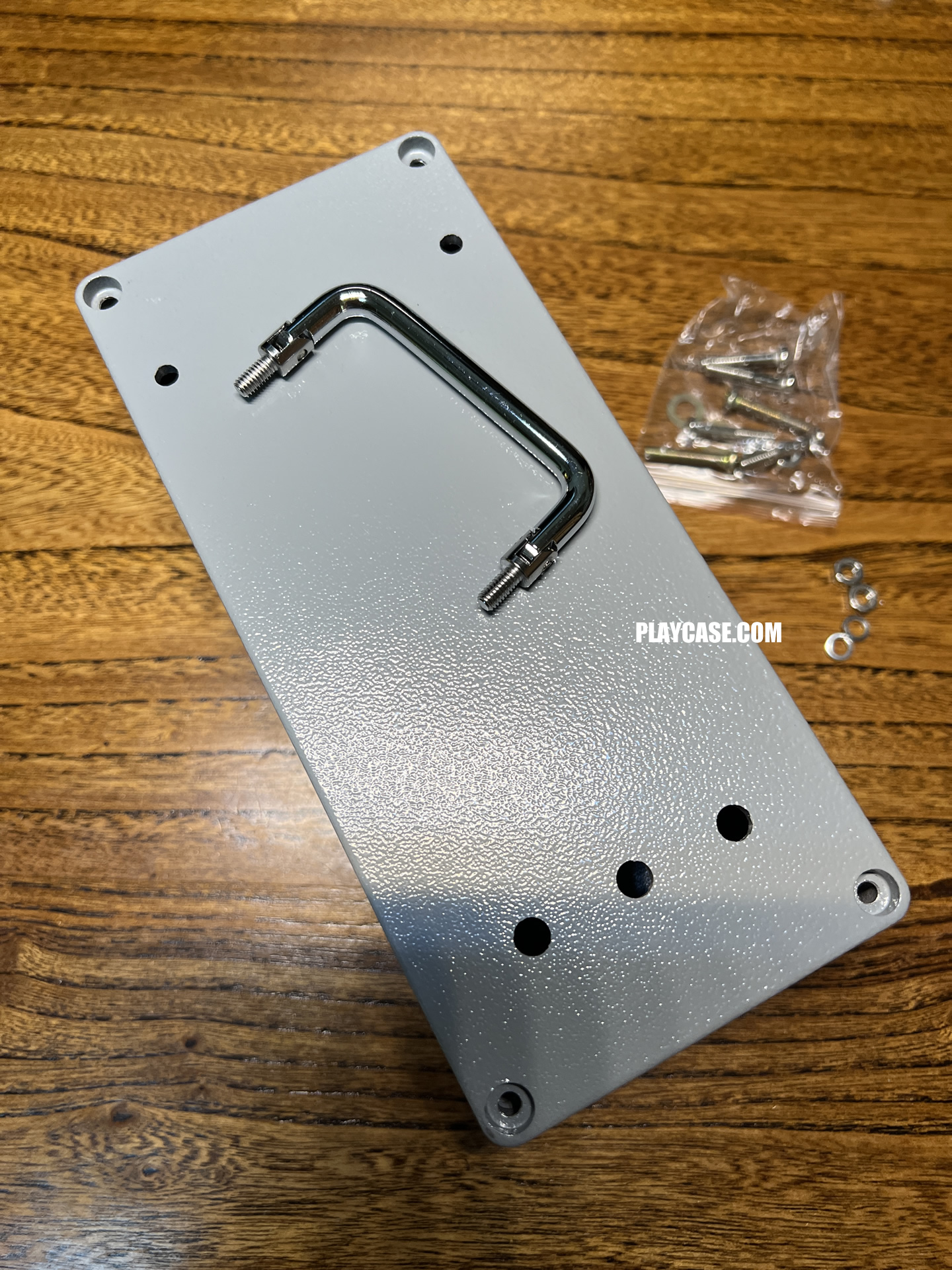

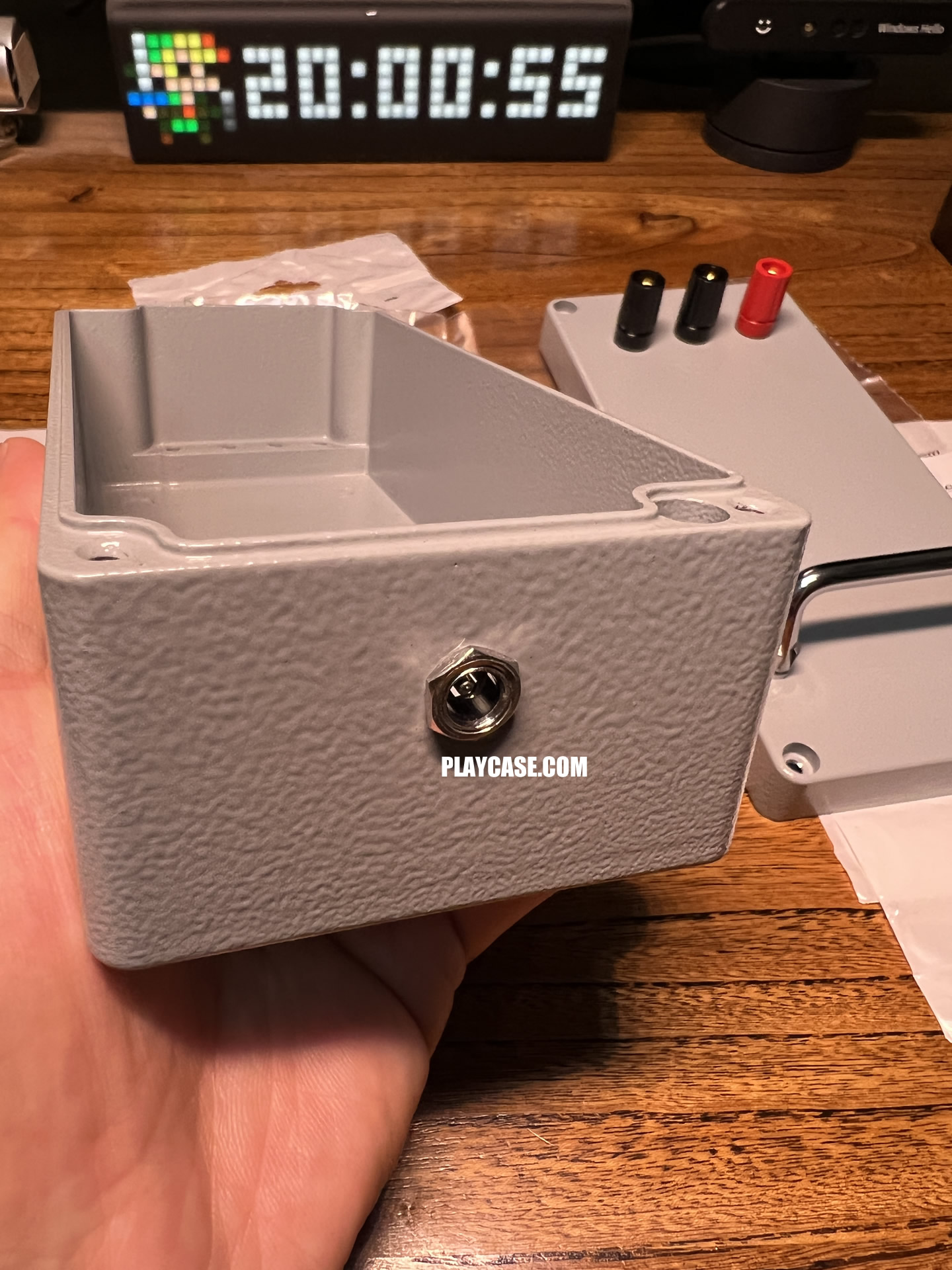

Pomona 3770 低热接线柱必不可少,千住热缩管做绝缘处理,外壳整体GND,纯铜5.5x2.1mm电源接口+特氟龙镀银线,提手开始用了折叠的,觉得不合适又换成直柄。

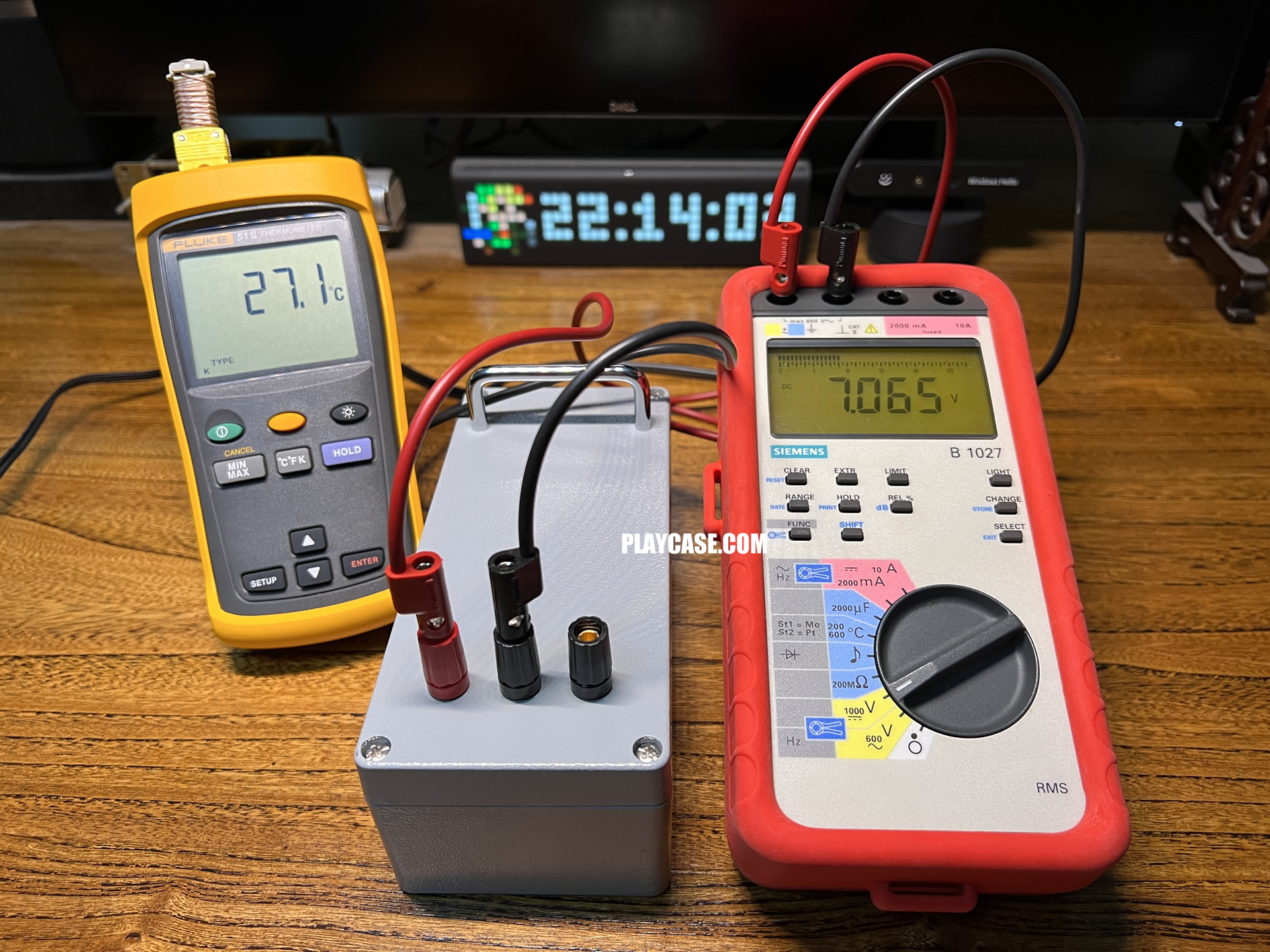

致敬!(jj3055于2003年12月1日 6位半标定7.06519V 11°),手机拍渣画质。
